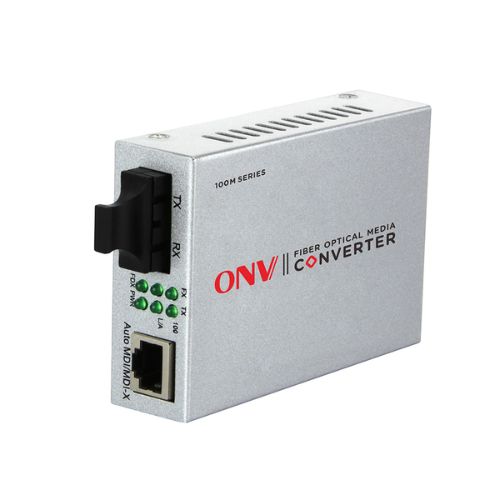

ONV 0110S-SCX-O-A 10 to 100Mbps 2 Port Single Mode Single Fiber Media Converter

Description

The ONV 0110S-SCX-O-A 10 to 100Mbps 2 Port Single Mode Single Fiber Media Converter is a plug-and-play device that requires no configuration. It supports full-duplex and half-duplex operation and auto-negotiation for speed and duplex mode. The media converter also features LED indicators to show the status of the power, link, and activity.

Specification	Value
Model	ONV0110S-SCX-O-A
Interface	1* 10/100Base-TX RJ45 port (Data), 1*155M uplink SC fiber port (Data)
Ethernet Port	10/100Base-TX,auto-sensing,Full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
Optical Fiber Port	155Mbps, single-mode single fiber SC interface
Optical Cable/ Distance	single mode: 1310nm / 0 ~ 40km, 1550nm 0 ~ 120km.
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX
IEEE802.3x	IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	1.0Gbps
Forwarding Rate@64byte	0.3Mpps
MAC	1K
Buffer Memory	768K
Jumbo Frame	1536byte
LED Indicator	Power: PWR (green), Data: L/A (green), Single / duplex: FDX (green), Fiber :FX(green), rate: 10/100 (green)
Power	Total PWR / Input Voltage
3W/ (5VDC)	Power Consumption
Standby<1W,Full Load<3W
Physical Parameter	Operation TEMP / Humidity
-20~+55°C;5%~90% RH Non condensing	Storage TEMP / Humidity
-40~+85°C;5%~95% RH Non condensing
Dimension (LWH)	947126mm
Net /Gross Weight	<0.2kg / <0.4kg
Installation	Desktop, 2U-14 slot rack
Certification & Warranty	Lightning protection / protection level
Lightning protection: 4KV 8/20us, Protection level: IP30	Certification
CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS	Warranty
3 years, lifelong maintenance.

ONV 0110S-SCX-O-A 10 to 100Mbps 2 Port Single Mode Single Fiber Media Converter

ONV 0110S-SCX-O-A 10 to 100Mbps 2 Port Single Mode Single Fiber Media Converter is a 10 to 100Mbps 2 Port Single Mode Single Fiber Media Converter that allows you to convert twisted pair Ethernet to single mode fiber optic signals. This media converter is perfect for extending the reach of your network over long distances or for connecting remote devices to your network.Extend the reach of your network over long distances with the ONV 0110S-SCX-O-A 10 to 100Mbps 2 Port Single Mode Single Fiber Media Converter. This plug-and-play device supports full-duplex and half-duplex operation and auto-negotiation for speed and duplex mode. It also features LED indicators to show the status of the power, link, and activity.

What is the Best Features ONV 0110S-SCX-O-A ?

• Converts twisted pair Ethernet to single mode fiber optic signals
• Supports 10 to 100Mbps data rates
• Plug-and-play operation
• Supports full-duplex and half-duplex operation
• Auto-negotiation for speed and duplex mode
• LED indicators for power, link, and activity

If you choose ONV 0110S-SCX-O-A, you will receive the following benefits:

Benefits:

• Extend the reach of your network over long distances
• Connect remote devices to your network
• Improve network performance and reliability
• Reduce network costs

Easy to use and simple to maintain

◇ Compatible with IEEE802.3u 100Base-TX/FX network protocol,10/100M R45 port rate auto-negotiation

◇ Support full-duplex/half-duplex working mode with auto-negotiation function

◇ Automatic identification of twisted pair MDI/MDI-X cross lines and parallel lines

◇ Plug and play, no configuration required, centralized power supply and centralized connection management through 2U-14 slot rack

◇ LED working status indication for network diagnosis and fault checking, reducing maintenance workload.

Is the ONV 0110S-SCX-O-A stable and reliable ?

Yes, the ONV 0110S-SCX-O-A is a stable and reliable media converter.

It is designed for use in enterprise and campus networks, where performance and reliability are critical. The media converter supports full-duplex and half-duplex operation, as well as auto-negotiation for speed and duplex mode. It also features LED indicators to show the status of the power, link, and activity.

◇ Low power consumption, No fan , galvanized steel casing.

◇ CCC,CE, FCC, RoHS.

◇ Comply with telecommunication network access requirements, and have the telecommunications equipment network access license of the MIIT.
