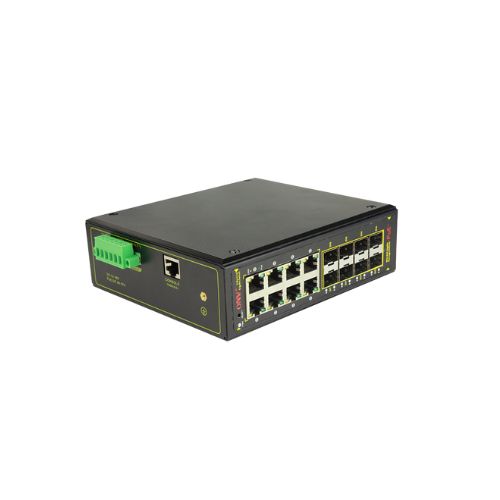

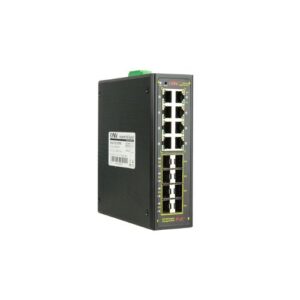

ONV-IPS33168F Gigabit 16-port L2+ managed industrial PoE switch

ONV-IPS33168F Gigabit 16-port L2+ managed industrial PoE switch

Features of the ONV-IPS33168F Gigabit 16-port L2+ managed industrial PoE switch

(Call for Price +88 018-94683430)

16 Gigabit ports (12 RJ45 + 4 SFP)
PoE: 8 ports support IEEE 802.3af/at
L2+ management: VLAN, QoS, ACL, IGMP
Redundant power, industrial-grade build (IP40)
Wide temp support, DIN-rail mountable

Description
Reviews (0)

Description

Specification of the ONV-IPS33168F Gigabit 16-port L2+ managed industrial PoE switch

Model	ONV-IPS33168PFM
Interface Characteristics
Fixed Port	1Console RS232 port(115200,N,8,1) 810/100/1000M PoE ports (Data/ Power) 8*100/1000M uplink SFP fiber ports (Data) 2 set V+, V- redundant DC power port (6P industrial Phoenix terminal)
Ethernet Port	Port 1-8 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Fiber Port Expansion	Support Turbo overclocking 2.5G optical module expansion and ring network
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
Chip Parameter
Network Management Type	L2+
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	52Gbps (non-blocking)
Forwarding Rate@64byte	23.81Mpps
CPU	416M
DRAM	1G
FLASH	128M
MAC	8K
Buffer Memory	4M
Jumbo Frame	9.6K
LED Indicator	System: SYS (Green), PoE: PoE (Green) , Fiber port: L/A (Green), Network: Link (Yellow)
Reset Switch	Yes, press and hold the switch for 10 seconds and release it to restore the factory settings
PoE& Power Supply
PoE Port	Port 1-8
PoE Management	PoE power supply total power limit configuration Power delay start, PoE work and time scheduling Port PoE working status display, Port PoE output priority configuration Port PoE output power distribution, PoE on/off, af/at power distribution
Power Supply Pin	1/2(+) 3/6(-)
Max Power Per Port	30W, IEEE 802.3 af/at
Power Consumption	Standby<10W, Full load af<120W, at<240W
Input Voltage/ Interface	DC48-57V, 6P industrial Phoenix terminal, support anti-reverse protection.
Power Supply	No, optional 48V/120W or 48V/240W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+80°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	16514854mm
Net /Gross Weight	1.1kg/ 1.3kg

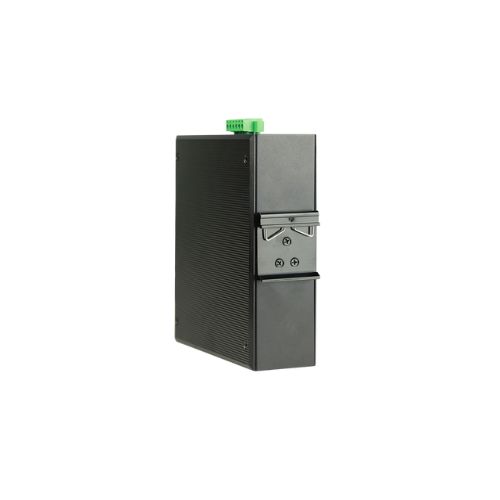

Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	IEC61000-4-3 (RS):10V/m (80-1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV Protection level: IP40, Lightning protection: 6KV 8/20us IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	5 years, lifelong maintenance.
Network Management Feature
Interface	Port green Ethernet Energy-saving setting Broadcast storm control based on port speed Port temperature protection setting, IEEE 802.3x flow control (Full duplex) The speed limit of the message flow in the access port, mini particle size is 64Kbps.
L3 Feature	ARP protocol max 1024 entries Static routing/ default routing, max 128 entries L2+ network management, IPV4/IPV6 dual stack management L3 routing and forwarding and communication between different network segments and different VLANs
VLAN	Access, Trunk, and Hybrid Port Configurations Port-based VLAN (4K), IEEE802.1q, QinQ configuration Voice VLAN, Protocol-based VLAN, MAC address-based VLAN
Port Aggregation	LACP, Static aggregation, Max 8 aggregation groups and 8 ports per group.
Spanning Tree	STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
Ring Network Protocol	G.8032 (ERPS), Recovery time less than 20ms. 250 Ring at most, Max 250 devices per ring.
Multicast	MLD Snooping, Multicast VLAN, IGMP Snooping v1/v2/v3, Max 1024 multicast groups, Fast log out
Port Mirroring	Bidirectional data mirroring based on port
QoS	Flow-based Rate Limiting, Flow-based redirection Queue Scheduling Algorithm (SP, WRR, SP+WRR) Flow-based Packet Filtering, 8*Output queues of each port 802.1p/ DSCP priority mapping, Diff-Serv QoS, Priority Mark/ Remark
ACL	ACL distribution based on port and VLAN L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc.
Security	Mac black holes, IP source protection IEEE802.1X & MAC address authentication Broadcast storm control, Backup for host datum SSH 2.0, SSL, Port isolation, ARP message speed limit User hierarchical management and password protection Anti-DoS attack, AAA & RADIUS & TACACS+ certification IP-MAC-VLAN-Port binding, ARP inspection, MAC learning limit
DHCP	DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay
Management	NTP clock, One click restore, SNMP V1/V2/V3 System work log, Web network management (https) Ping detection, Link Layer Discovery Protocol (LLDP) ONV-NMS platform cluster management (LLDP+SNMP) Cable status check, Viewing CPU Instant Utilization Status Console/ AUX Modem/ Telnet/ CLI command line configuration FTP, TFTP, Xmodem, SFTP file upload and download management
System	Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable

ONV-IPS33168F Gigabit 16-port L2+ managed industrial PoE switch

The ONV-IPS33168F Gigabit 16-port L2+ managed industrial PoE switch is an industrial-grade, high-performance networking solution built for demanding applications and harsh environments. This switch supports long-distance fiber communication and guarantees smooth data and power transfer over a single cable, thanks to its dual Mbps SFP uplink slots and 16 Mbps PoE ports. It satisfies the requirements of contemporary industrial networks, including those for industrial automation systems, smart city monitoring, and intelligent transportation. The ONV-IPS33168F is designed with sophisticated Layer 2+ management features that include link aggregation, port mirroring, IGMP snooping, QoS priority, VLAN segmentation, and more. Thanks to advanced PoE power management technology and a maximum PoE power budget of 250W, it reliably supplies power to connected PoE-enabled IP cameras, wireless access points, or VoIP phones while automatically identifying and protecting non-PoE devices. Device safety and network stability are guaranteed by redundant power inputs and lightning protection.

Overall, the ONV-IPS33168F Gigabit 16-port L2+ managed industrial PoE switch guarantees safe, effective, and scalable networking for industrial-grade applications, whether it is installed in factories, transit systems, or highways.

What is the price of the ONV-IPS33168F Gigabit 16-port L2+ managed industrial PoE switch in Bangladesh?

The latest price of the ONV-IPS33168F Gigabit 16-port L2+ managed industrial PoE switch is (Call for Price +88 018-94683430). You can buy the ONV-IPS33168F Gigabit 16-port L2+ managed industrial PoE switch from us at the best price. You can either purchase it through our website or directly visit our office.
