SPECIFICATIONS: HDES120-KVM
| Length of CAT-6 cable between Rx and TX | Up to 120 meters |
| HDMI Resolutions | 480p,720p,1081p,4K |
| Audio | Sample rate: 32 kHz, 44.1 kHz, and 48 kHz |
| IR remote control | 38KHZ; NEC |
| HDMI | HDMI 4K 30Hz |
| Max bandwidth | 340MHz |
| Max baud rate | 3X3.4Gbps |
| Input Video signal | 0.5~1.5Volts p-p |
| Output DDC signal | 5Volts p-p (TT1L) |
| Input/output HDMI1.3 cable distance | <=20m AWG26 HDMI 1.3 standard cable |
| Power consumption | HDMI Sender: 3W HDMI Receiver: 3W |
| Power adapter format | Input: AC (50HZ~60HZ) 100V-240V; Output: DC5V/1A |
| Operating Temperature range | (0 to +45 Centigrade) |
| Operating Humidity range | 10 to 80% RH (No Condensation) |
| Dimension (L x W x H) | 107x105x27.3mm |
| Weight | 499g*2PCS |

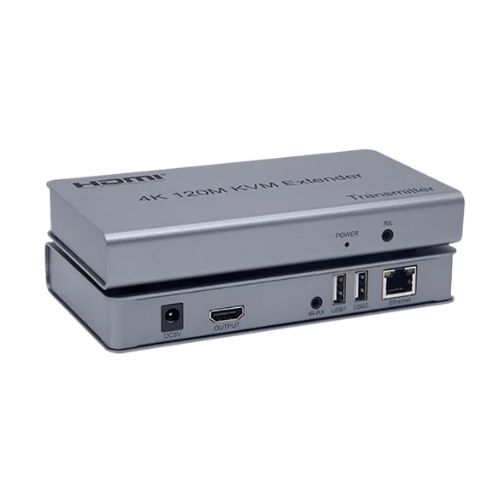

The HDMI4K 30Hz is supported by the 120 METER 4K KVM HDMI EXTENDER. The length of CAT6 between Rx and Tx It transmits your HD display with high resolutions up to 120 meters away from your HDMI or DVI-D source by using one CAT5e/6 cable. With the advantage of the TCP/IP standard, you can extend your HD video to multiple displays by using an Ethernet switch, providing greater flexibility and options when integrating several home theater components.
The latest price of the 120 METER 4K KVM HDMI EXTENDER is 6,000 BDT. You can buy this 120-meter 4K HDMI Extender at the best price. You can either buy it through our website or directly visit our office. Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh. Contact Us: +88 01894-683430
