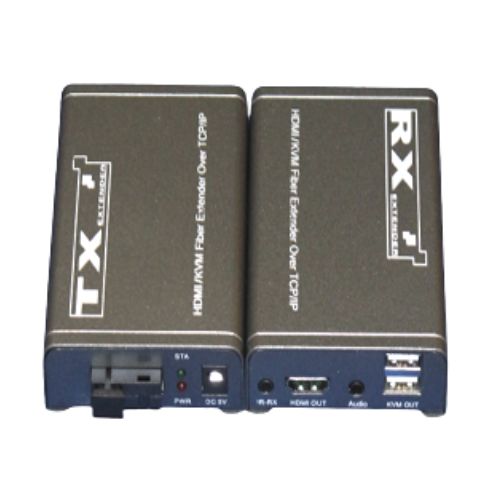

Key features of the 20 KM KVM FIBER HDMI EXTENDER
| Description | Parameter | |
| Video | Maximum pixel clock | 165MHz |
| Maximum data rate | 6.75Gbps | |
| Resolution | 1920X1080P@60Hz; 4K@30Hz(optional model function) | |
| Impedance | 100Ω | |
| USB | Interface | PC: Type B USB interface; connect to pc; K/M: connect USB keyboard and mouse; |
| USB Signal | HID Signal | |
| IR | Interface | 3.5mm seat |
| Signal direction | Unidirectional | |
| IR frequency | 20-60kHz | |
| Audio | Interface | 3.5mm seat |
| Signal model | Embedded unidirectional stereo | |
| Fiber | Interface | SC/FC |
| Fiber Model | Single mode | |
| wavelength | Single mode 1310nm；1550nm | |
| bandwidth | 6.25Gbps | |
| Transmission distance | Default standard 20KM, MAX up to 80KM | |
| Other | Power supply | The power adapter: DC 5V/1A |
| Power dissipation | MAX 3W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 97*73*26mm | |
The 20 KM KVM Fiber HDMI Extender is a powerful device that supports HDMI 1.3 and HDCP 1.1 and 1.2 and can transmit high-quality video and audio signals over long distances. With support for input and output resolutions of 480i/p, 576i/p, 720i/p, and 1080i/p, this extender is perfect for use in a variety of applications.
The latest price of the 20 KM KVM FIBER HDMI EXTENDER is 9900 BDT. You can buy this 20KM HDMI Extender from us at the best price. You can either buy it through our website or directly visit our office. Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh. Contact Us: +88 01894-683430
No reviews yet. Be the first to review this product!
