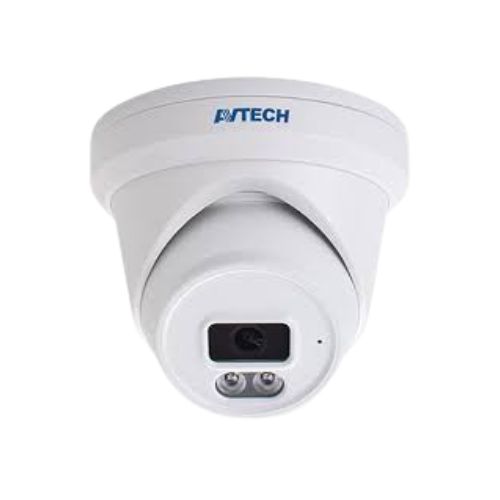

| Model | DGM2203SVWHT |
| Device | |
| Image Sensor | 1/2.8” SONY CMOS |
| Max. Resolution | 1920 x 1080 |
| Lens | f2.8mm / F1.0 |
| Viewing Angle | 112° (Diagonal) |
| Min Illumination | 0.0001 Lux (LED off), 0 Lux (LED on) |
| Shutter Speed | AUTO, 1/25s ~ 1/100000s |
| LED | 2 warm LED units |
| IR Effective Distance | Up to 30 meters |
| Day / Night | Yes |
| WDR Mode | YES (120dB) |
| RTC (real-time clock) | Yes |
| MicroSD Card Slot | YES (up to 256GB) |
| Video | |
| Compression | H265 / H.264 |
| Video Resolution | Main Stream: 2MP (1080P)/720P/DD1 Sub Stream: D1 /VGA/640x360/CCIF |
| Frame Rate | 2MP @ 30FPS |
| Video Profile | High profile main profile / Base profile |
| Multiple Video Streaming | 2 streams |
| Bitrate Control | 512Kbps–12Mbps, VBR/CBR |
| Image Enhancement | WDR, BLC, HLC, 2D DNR, 3D DNR, AWB, MWB and AGC |
| Day / Night Switch | Auto /Color/(B/W)/Timing |
| Forced Anti-flicker | Yes |
| Defog | Yes |
| White Balance | Auto / Manual |
| Image Orientation | Rotate / Mirror |
| Privacy Mask | Yes |
| Text Overlay | Yes |
| OSD Title | Location, font size, and text are configurable; text input (English & Chinese characters) and image upload (BMP) supported |
| Audio | |
| Microphone built-in | Yes |
| Encoding | G.711-u / G.711-a |
| Audio Adjustment | Yes |
| Alarm & Event | |
| Detection Mode | Motion / Human Detection |
| Detection Schedule | Yes |
| Motion Detection Area | 1x1, 2x2, 3x2, 3x3, 4x3, 4x4, 8x8, 16x16, 22x18 |
| Storage | |
| On-Board Storage | Built-in memory card slot supports microSD / SDHC / SDXC card up to 256GB |
| Overwrite | Yes |
| Maximum Recording Time / per File | 1, 2, 3, 5, 10, 20 & 30 minutes are configurable |
| Recording Schedule | Yes |
| Network | |
| LAN Port | RJ45 connector x 1 / 4KV lightning-proof |
| LAN Speed | 100Mbps Based-T Ethernet |
| Supported Protocols | HTTP, RTSP, FTP, SMTP, DHCP, NTP, NFS / RTMP |
| ONVIF Compatible | Onvif 17.06 is compatible |
| Number of Online Users | 6 |
| Remote Access | Internet Explorer 6 and above (recommended), Microsoft Edge & Google Chrome |
| General | |
| Web Interface Language | English, Traditional Chinese, Simplified Chinese, Russian, German, Italian, Turkish, and Korean |
| Operating Temperature | -30℃ ~ 60℃ |
| Operating Humidity | 10%-90%RH |
| POE | IEEE 802.3af |
| Power Source (±10%) | PoE / DC12V |
| Power Consumption (±10%) | < 8 W |
| Weight | 491 g |
| Casing | IP66 |
