| Specification | Value |
|---|---|

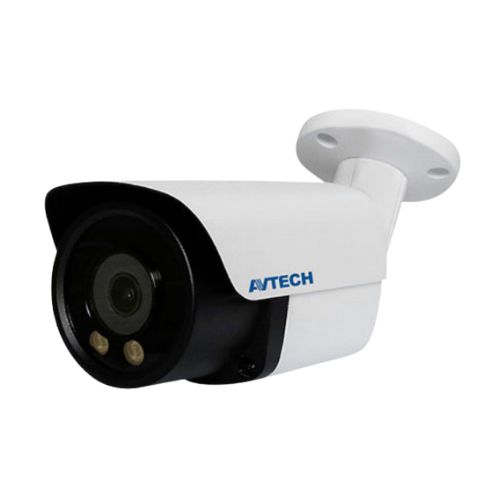

| Device | DGM5506SVSGAT |
| Image Sensor | 1/2.8” SONY CMOS |
| Max. Resolution | 2560 x 1944 |
| Lens | f2.8mm / F1.6 |
| Viewing Angle | 112° (Diagonal) |
| Min Illumination | 0.001 Lux (LED off), 0 Lux (LED on) |
| Shutter Speed | AUTO, 1/25s ~ 1/100000s |
| LED | 2 dual-light (IR & warm) units |
| Effective Distance | Up to 30 meters |
| Day / Night | YES |
| WDR Mode | YES (120dB) |
| RTC (real-time clock) | YES |
| MicroSD Card Slot | YES (up to 256GB) |
| Video | |
| Compression | H265 / H.264 |
| Video Resolution | Main Stream: 5MP (2592x1944), 4MP (2560x1440), 3MP (2304x1296), 2MP (1080P), 720P <br> Sub-Stream: D1/VGA/640x360/480x360/CCIF |
| Frame Rate | 5MP @ 25FPS |
| Video Profile | High profile main profile / Base profile |
| Multiple Video Streaming | 2 streams |
| Bitrate Control | 512Kbps–12Mbps, VBR/CBR |
| Image Enhancement | WDR, BLC, HLC, 2D DNR, 3D DNR, AWB, MWB and AGC |
| Day / Night Switch | Auto /Color/(B/W)/Timing |
| Forced Anti-flicker | YES |
| Defog | YES |
| White Balance | Auto / Manual |
| Image Orientation | Rotate / Mirror |
| Privacy Mask | YES |
| Text Overlay | YES |
| OSD Title Location, font size, and text are configurable; text input (English & Chinese characters) and image upload (BMP) supported | YES |
| Audio | |
| Microphone built-in | YES |
| Speaker built-in | YES |
| Encoding | G.711-u / G.711-a |
| Audio Adjustment | YES |
| Network | |
| LAN Port | RJ45 connector x 1 / 4KV lightning-proof |
| LAN Speed | 100Mbps Based-T Ethernet |
| Supported Protocols | HTTP, RTSP, FTP, SMTP, DHCP, NTP, NFS and RTMP |
| ONVIF Compatible Onvif 17.06 is compatible | |
| Number of Online Users | |
| 6 | |
| Remote Access | |
| Internet Explorer 6 and above (recommended), Microsoft Edge & Google Chrome | |
| Storage | |
| On-Board Storage | |
| Built-in memory card slot supports microSD, SDHC, and SDXC cards up to 256GB | |
| Overwrite | |
| YES | |
| Maximum Recording Time per File | |
| 1, 2, 3, 5, 10, 20 & 30 minutes are configurable | |
| Recording Schedule | |
| YES |
