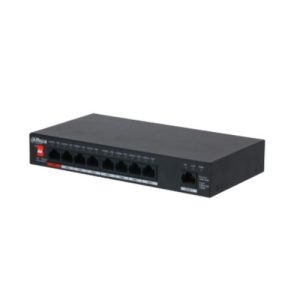

Dahua PFS3009-8ET1GT-96 8 Port Unmanaged Desktop Switch

Hardware

Ethernet Port

Port 1-8:8 × RJ45 10/100M(PoE)
Port 9:1 × RJ45 10/100/1000M(Uplink)

PoE Budget

Port 1≤ 60W(Hi-PoE), Port2-8 ≤30W, total≤96W

Power Consumption (static)

2.7W

Standards Compliance

IEEE802.3, IEEE802.3u, IEEE802.3x

PoE Standard

IEEE802.3af, IEEE802.3at, Hi-PoE

PoE Pin Assignment

PoE/Hi-PoE:1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance

250 m, 10 Mbps

PoE Management

Support

Switching Capacity

3.6 GB

Packet Forwarding Rate

2.678 Mpps

Packet Buffer Memory

1 Mbit

MAC Table Size

2K

Flow Control

Enable by default

Operating Humidity

5%–95%

Power Supply

External power adpater: 53V DV

Thunderproof

Common mode: 4kV
Differential mode: 2kV

ESD

Air discharge: 8kV
Contact discharge: 6kV

Mounting

Support desktop and wall mounting

Anti-theft Lock Hole

Support

Operating Temperature

-10°C to 55°C (14°F to 131°F)

Weight

Net weight: 0.47 kg (1.04 lb)
Box weight (with accessory): 1.28 kg (2.82 lb)
Protective box weight (with accessory): 10.98 kg (24.21 lb)

Dimensions (W × D × H)

190 mm × 100 mm × 30 mm (7.48” × 3.94” × 0.9”)

Packaging Dimensions (W × D × H)

Packing box: 267 mm × 239 mm × 77 mm (10.51” × 9.41” × 3.03”)
Protective box: 549 mm × 253 mm × 331 mm (21.61”× 9.96” × 13.03”)

Dimensions (mm[inch])

Transmission Performance:

Switch power supply voltage 53V.

CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m

Cable(m)

Load Capacity(W)

Bandwidth(Mbps)

IEEE802.3bt 90 W

100

71.3

100

150

62

10

200

51

10

250

40

10

Hi-PoE 60 W

100

53

100

150

50

10

200

47

10

250

37

10

IEEE802.3at 30 W

100

25.5

100

150

25.5

10

200

25.5

10

250

25.5

10

Note: Data from this table was collected by Dahua test lab and is for reference only . The actual transmission distance may vary due to power consumption of connected devices or the cable type and status.

Details of Features Dahua PFS3009-8ET1GT-96 8 Port Unmanaged Desktop Switch

The Dahua PFS3009-8ET1GT-96 8 Port Unmanaged Desktop Switch provides 2 layer commercial switch .It’s supports IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x standards. The first Port supports 60W power supply with Hi-PoE. It’s wall-mount installation. This PoE switching capacity of 3.6 Gbps and packet forwarding rate of 2.678 Mbps.

Overall, the Dahua PFS3009-8ET1GT-96 8 Port Unmanaged Desktop Switch is a reliable and affordable switch that is ideal for small-scale networks.

What is the Price of the Dahua PFS3009-8ET1GT-96 8 Port Unmanaged Desktop Switch in Bangladesh in 2023?

The latest price of the Dahua PFS3009-8ET1GT-96 8 Port Unmanaged Desktop Switch is 6700 BDT. You can buy the Dahua PFS3009-8ET1GT-96 8 Port Unmanaged Desktop Switch from us. To buy this product, You can either buy it through our website or directly visit our office.
