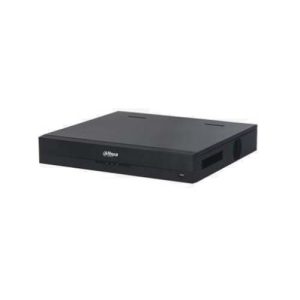

Name: Dahua XVR5416L-I3 16 Channels DVR
Price: 36450 BDT
Availability: InStock

Dahua XVR5416L-I3 16 Channels DVR

BDT 36,450.00 ~~BDT 38,000.00~~

Key Features of the Dahua XVR5416L-I3 16 Channels DVR

Supports 16-channel AI-coding.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 24 channels of IP camera inputs, each channel up to 8 MP; max 128 Mbps incoming bandwidth.
Up to 4 channels of video stream (analog channel) Perimeter Protection
Up to 16 channels of video stream (analog channel) in SMD Plus

Back to Shop

Specification of the Dahua XVR5416L-I3 16 Channels DVR

System

Main Processor

Embedded Processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

Perimeter Protection

Perimeter Performance of AI by Recorder (Number of Channels)

Advanced Model: 2 channels, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channel

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels (up to 12 face images)

Face Recognition

Face Database Capacity

Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, certificate number, countries, regions, and state can be added to each face image

Face Recognition Performance of AI by Recorder (Number of Channels)

2 channels

SMD Plus of Dahua XVR5416L-I3 16 Channels DVR

SMD Plus by Recorder

16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain, and lighting condition change

Audio and Video

Analog Camera Input

16 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 5 MP@25/30 fps; 4 MP@25/30 fps; 1080p@25/30 fps, 720p@50/60 fps; 720p@25/30 fps. 2. TVI: 5 MP@25/30 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@25/30 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input

Up to 24 channels of IPC access 8 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.

Encoding Capacity

Main stream: All channels 5M-N@(1 fps–10 fps); 4M-N@ (1 fps–15 fps); 1080p@(1 fps–15 fps); 1080N@(1 fps–25/30 fps); 720p@(1 fps–25/30 fps); 960H@(1 fps–25/30 fps); D1@(1 fps–25/30 fps); CIF@(1 fps–25/30 fps) Sub stream: D1@(1 fps–15 fps); CIF@(1 fps–15 fps)

Dual-stream

Yes

Video Frame Rate

PAL: 1 fps–25 fps

NTSC: 1 fps–30 fps

Video Bit Rate

32 kbps–6144 kbps

Audio Sampling

8 kHz, 16-bit

Audio Bit Rate

64 kbps

Video Output

2 HDMI, 1 VGA, and 1 TV Resolution VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 It changes to 1920 × 1080, 1280 × 1024, and 1280 × 720 when Face or IVS&SMD is selected in AI Mode. *Heterogeneous video source output for HDMI2 is configurable.

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung

Compression Standard of Dahua XVR5416L-I3 16-Channel DVR

Video Compression

AI Coding; H.265+; H.265; H.264+; H.264

Audio Compression

G.711a; G.711u; PCM

Network of Dahua XVR5416L-I3 16 Channels DVR

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 21.06; CGI

Browser

Chrome, IE9 or later, Firefox

Network Mode

Multi-address mode, Fault Tolerance, Load Balance

Recording Playback

Record Mode

General, motion detection; intelligent; alarm; POS

Recording Playback

1/4/9/16 It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode.

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; video loss; tampering; local alarm

Anomaly Alarm

No disk; storage error; disk full; camera offline; IP conflict; MAC conflict

Intelligent Alarm

Face detection; face recognition; perimeter protection

Alarm Linkage

Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email

Ports of Dahua XVR5416L-I3 16 Channels DVR

TV Output

Yes

Audio Input

4-channel BNC (external) 16-channel BNC (coaxial audio)

Audio Output

1-channel BNC

Two-way Talk

1-channel BNC

Alarm Input

16 channels

Alarm Output

6 channels

HDD Interface

4 SATA ports, up to 16TB, the maximum HDD capacity varies with environmental temperature

eSATA

RS-232

1 port, for PC Communication & Keyboard

RS-485

1 port, for PTZ control

USB

3 (1 front USB 2.0 port, 2 rear USB 3.0 ports)

HDMI

VGA

Network Port

2 (10/100/1000 Mbps Ethernet port, RJ-45)

General

Power Supply

100–240 VAC, 50±2% Hz

Power Consumption

<15 W (without HDD)

Net Weight

4.45 kg (9.81 lb)

Gross Weight

6.75 kg (14.88 lb)

Product Dimensions

1.5U, 440 mm × 420.2 mm × 76 mm (17.32" × 16.54" × 2.99") (W × D × H)

Packaging Dimensions

529.0 mm × 499.0 mm × 211.0 mm 20.83" 9.65"× 8 8.31" (W × D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Operating Humidity

10%–90% (RH)

Installation

Rack or desktop

Certifications

CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B

Details of the Dahua XVR5416L-I3 16 Channels DVR

The Dahua XVR5416L-I3 16 Channels DVR has 24-channel IP camera inputs, each up to 8 MP, with a maximum incoming bandwidth of 128 Mbps. This high-performance DVR integrates cutting-edge technologies such as H.265+/H.265 dual-stream video compression, AI coding, Perimeter Protection, SMD Plus, and facial recognition. With an emphasis on versatility, it supports up to 24 channels of IP camera inputs and boasts extensive storage capabilities. It features 4 SATA ports, each supporting up to 16TB. The Dahua XVR5416L-I3 16-Channel DVR provides substantial storage capacity, accommodating the demands of businesses and organizations with extensive surveillance needs.

What is the price of the Dahua XVR5416L-I3 16 Channels DVR in Bangladesh?

The latest price of the Dahua XVR5416L-I3 16 Channels DVR is 36,450 BDT. You can buy the Dahua 16 channel DVR from us at the best price. You can either buy it through our website or directly visit our office. Our Head Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh. Contact: +88 01894-683430
