| Brand | Jovision |
| Model | JVS-N935-ADL |
| Video | |
| Image Sensor |
1/2.9" CMOS Sensor
|
| Max Resolution | 2304x1296 |
| Effective Pixels | 3.0MP |
| Compression Standard | H.264/H.265 |
| Framerate | 20fps |
| Bitrate |
Main Stream: 256Kbps ~ 4Mbps
Sub Stream: 68Kbps ~ 1024Kbps
|
| SNR (dB) | 39dB |
| Min. Illumination | 0Lux (light ON) |
| Lens | |
| Interface Type | M12 |
| Lens | 2.8mm, 3.6mm |
| FOV (2.8mm) |
H 96°, V 53°, D 110°
|
| FOV (3.6mm) |
H 83.8°, V 42.7°, D 100.1°
|
| Function | |
| Audio Codec |
G.711U/G.711A (default)
|
| Exposure Control | Auto |
| White Balance | Auto |
| Gain Control | Auto |
| Digital 3D Noise Reduction | Support |
| OSD Information Setting |
Large font OSD, OSD flashing on alarm, OSD position settings
|
| SNTP | Support |
| Schedule Reboot | Support |
| Smart Defog | Support |
| Motion Detection |
Support (Humanoid)
|
| Image Setting |
Support Saturation, Brightness, Contrast, Sharpness adjustment
|
| Image Style |
Standard, Soft, Transparent
|
| Day and Night Function |
Auto, Always Black & White, Always Color, Scheduled Color
|
| Privacy Mask |
Support up to 8 areas
|
| Electronic Screen Setting |
Support maximum and minimum exposure time setting
|
| Night Vision Optimization | Support |
| DWDR | Support |
| Screen Settings |
Screen mirroring, Screen flipping
|
| IP Adaptation |
Support automatic adaptation of IP address (Optional)
|
| Alarm Method |
Email Alarm, Client Alarm
|
| Remote Operation |
System, Audio and Video, Image, Alarm, Network management
|
| Audio Function | Built-in Mic |
| Network | |
| Ethernet |
10/100Mbps Ethernet
|
| Stream | 2x Streams |
| Network Protocols |
HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
|
| ONVIF |
Standard ONVIF
|
| Network Transmission | CloudSEE 2.0 |
| Browser |
IE8+, Chrome18+, Firefox5.0+, Safari5.02+
|
| User | Up to 13 Users |
| App |
Support iOS/Android
|
| General | |
| Lights |
2 White LEDs + 2 IR LEDs
|
| IR Distance | Up to 25 Meters |
| Waterproof Level | IP53 |
| Power Supply |
DC12V or PoE (IEEE802.3af)
|
| Power Consumption |
<3W (During Day); <6W (At Night)
|
| Working Temperature | -40°C ~ 60°C |
| Working Humidity | 10% ~ 90% Rh |
| Color/Material |
Black and White / Plastic + Metal
|
| Dimensions (WxH) | 80x100mm |
| Weight | 200g |
| Installation Method |
Wall or ceiling mount
|

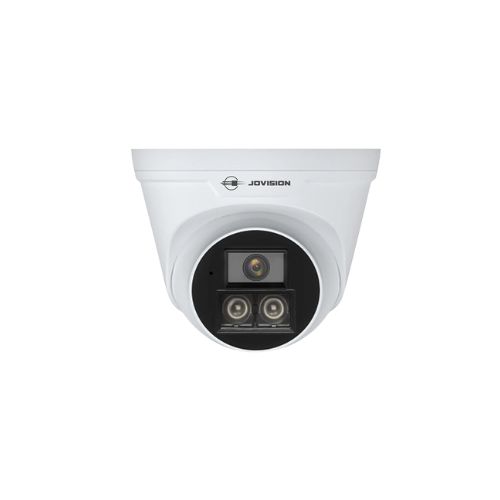

The Jovision JVS-N935-ADL is a high-performance 3MP Dual Light Video & Audio PoE Network Camera, offering superior surveillance with a 2304x1296 resolution. Powered by a 1/2.9" CMOS sensor, it provides clear, detailed video with H.264/H.265 compression for efficient streaming. The camera comes with two lens options (2.8mm and 3.6mm) and offers a wide field of view, from 110° (2.8mm) to 100.1° (3.6mm), allowing for flexible installation and coverage.
