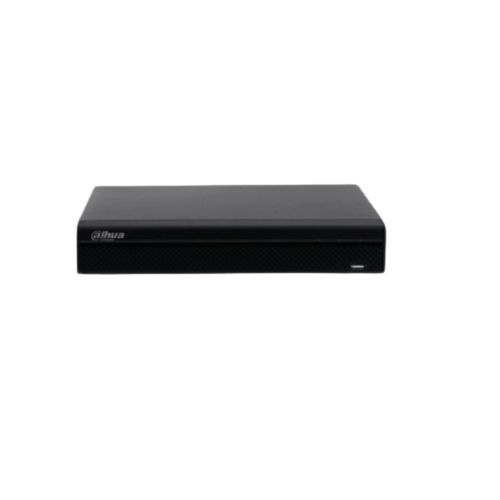

Features of the Dahua NVR4232-4KS2/L 32 Channel NVR
The Specification of Dahua NVR4232-4KS2/L 32 Channel NVR
| Feature | Specification |
|---|---|
| System | |
| Main Processor | Quad-core embedded processor |
| Operating System | Embedded LINUX |
| Audio and Video | |
| IP Camera Input | 32 Channel |
| Two-Way Talk | 1 Channel Input, 1 Channel Output, RCA |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | HDMI: 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 |
| VGA: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | |
| Decoding Capacity | 4-ch@8MP(30fps), 16-ch@1080P(30fps) |
| Multi-Screen Display | 1/4/8/9/16/25/36 |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording |
| Recording | |
| Compression | Smart H.265+/H.265/Smart H.264+/H.264/MJPEG |
| Resolution | 12MP with 15fps, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1, CIF with 30fps |
| Bit Rate | Max 200 Mbps Bit rate input |
| Record Mode | Manual, Schedule (Regular, MD(Motion Detection), Alarm, IVS), Stop |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Video Detection And Alarm | |
| Trigger Event | Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering |
| Alarm Input | 4 Channel |
| Relay Output | 2 Channel |
| Playback And Backup | |
| Sync Playback | 1/4/9/16 |
| Search Mode | Time/Date, Alarm, MD, and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Third-Party Support | |
| Third-Party Support | Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more |
| Network | |
| Interface | 1 RJ-45 Ports (10/100/1000Mbps) |
| PoE | N/A |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4IP |
| Maximum User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, SDK, CGI |
| Storage | |
| Internal HDD | 2 SATA III Ports, up to 6TB capacity for each HDD |
| HDD Mode | Single |
| eSATA | N/A |
| Auxiliary Interface | |
| USB | 2 ports (1 Rear USB3.0, 1 Front USB2.0) |
| RS232 | 1 Port for PC Communication and Keyboard |
| RS485 | 1 Port, for PTZ Control |
| Power | |
| Power Supply | Single, DC12V/4A |
| Power Consumption | <9.5W (Without HDD) |
| Component Environment | |
| Operational Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Construction | |
| Dimensions | 1U, 375mm x 281.5mm x 56mm (14.8" x 11.1" x 2.2") |
| Warranty | |
| Manufacturing Warranty | 01-year warranty |
The Dahua NVR4232-4KS2/L 32 Channel NVR offers a range of powerful features for video surveillance. It supports various codecs such as H.265, H.264, MJPEG, and MPEG4 for efficient video decoding. With a maximum incoming bandwidth of 320 Mbps, this NVR can handle high data loads, and it allows for preview and playback of resolutions of up to 12 megapixels. In summary, the Dahua NVR4232-4KS2 NVR offers advanced video recording and playback capabilities, efficient compression technology, and broad compatibility, making it a versatile choice for surveillance systems.
The latest price of the Dahua NVR4232-4KS2/L 32 Channel NVR is 21,800 BDT. You can buy the Dahua 32 Channel NVR from us at the best price. You can either buy it through our website or directly visit our office. Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh. Contact: +88 01894-683430
