| Specification | Value |
|---|---|
| Model | ONV0110S-SCX-S2-B |
| Interface | 210/100Base-TX RJ45 ports (Data), 1155M uplink SC/LC fiber port (Data) |
| Ethernet Port | 10/100Base-TX auto-sensing, Full/half duplex MDI/MDI-X self-adaption |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meters), 100BASE-TX: Cat5 or later UTP(≤100 meters) |
| Optical Fiber Port | 155Mbps, single-mode single fiber SC interface |
| Optical Cable/ Distance | Single-mode: 1310nm/ 0-40km, 1550nm/0-120km. |
| Chip Parameter | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX, IEEE802.3x |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 1.0Gbps |
| Forwarding Rate@64byte | 0.47Mpps |
| MAC | 1K |
| Buffer Memory | 768K |
| Jumbo Frame | 1536byte |
| LED Indicator | Power: PWR (Green), Data: L/A (Green), Single/duplex: FDX (Green), Fiber: FX (Green), Rate:10/100M(Green) |
| Power Supply | Total PWR / Input Voltage |
| Power Consumption | Standby<1W, Full Load<3.5W |
| Physical Parameter | |
| Operation TEMP / Humidity | -20°C~+55°C, 5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40°C~+85°C, 5%~95% RH Non condensing |
| Dimension (LWH) | 947126mm |
| Net /Gross Weight | <0.2kg / <0.4kg |
| Installation | Desktop, 2U-14 slot rack |
| Certification & Warranty | |
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
| Warranty | 3 years, lifelong maintenance. |

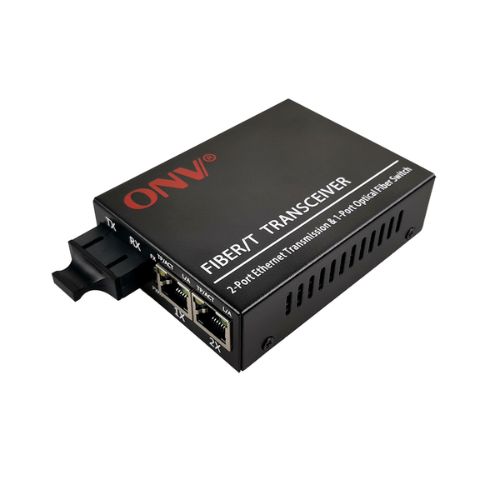

ONV 0110S-SCX-S2-B 10 To 100 Mbps 3 Port Single Mode Dual Fiber Media Converter is a high-performance networking solution that is ideal for a variety of applications. It can be used to connect multiple Ethernet devices to a fiber optic backbone, extend the reach of an Ethernet network to a remote location, or create a redundant network connection.
The ONV 0110S-SCX-S2-B 10 To 100 Mbps 3 Port Single Mode Dual Fiber Media Converter supports single-mode dual fiber, which allows for transmission distances up to 20 kilometers. This makes it ideal for use in long-distance networking applications, such as connecting buildings on a campus or providing broadband internet access to rural areas.The ONV 0110S-SCX-S2-B 10 To 100 Mbps 3 Port Single Mode Dual Fiber Media Converter is also easy to install and use. It is a plug-and-play device, so there is no configuration required. Simply connect the Ethernet and fiber optic cables, and the media converter will start working immediately.
The ONV 0110S-SCX-S2-B is ideal for a variety of applications, including:
Easy to use and simple to maintain
◇ Support full-duplex/half-duplex working mode with auto-negotiation function.
◇ Automatic identification of twisted pair MDI/MDI-X cross lines and parallel lines.
◇ LED working status indication for network diagnosis and fault checking, reducing maintenance workload.
◇ Compatible with IEEE 802.3u 100Base-TX/FX network protocol, 10/100M R45 port rate auto-negotiation.
◇ Plug and play, no configuration required, centralized power supply and centralized connection management through 2U-14 slot rack.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Low power consumption, No fan, galvanized steel casing.
◇ Comply with telecommunication network access requirements, and have the telecommunications equipment network access license of the MIIT.
0110S-SCX-S2-A media converter offers a number of benefits for security purposes, including:
