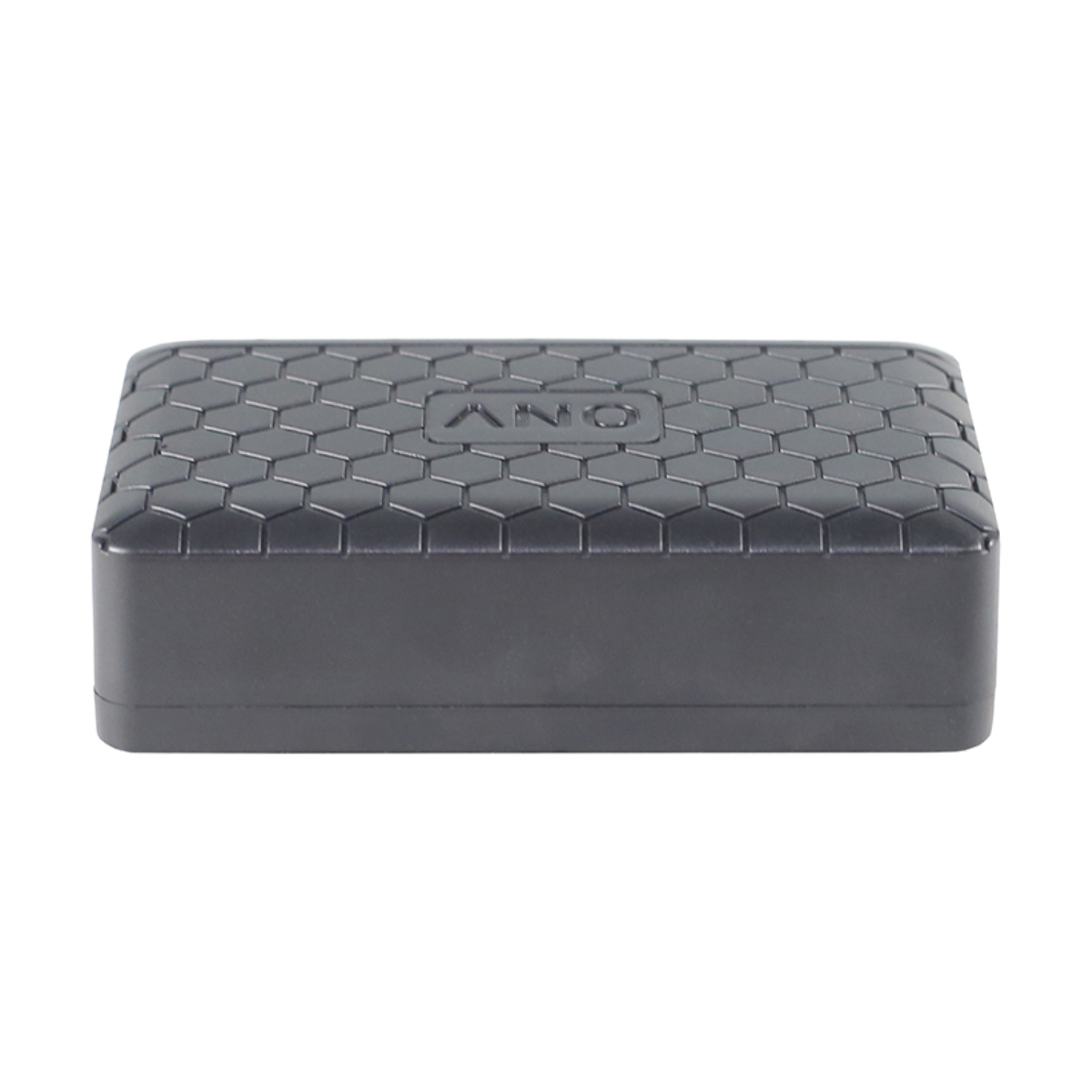

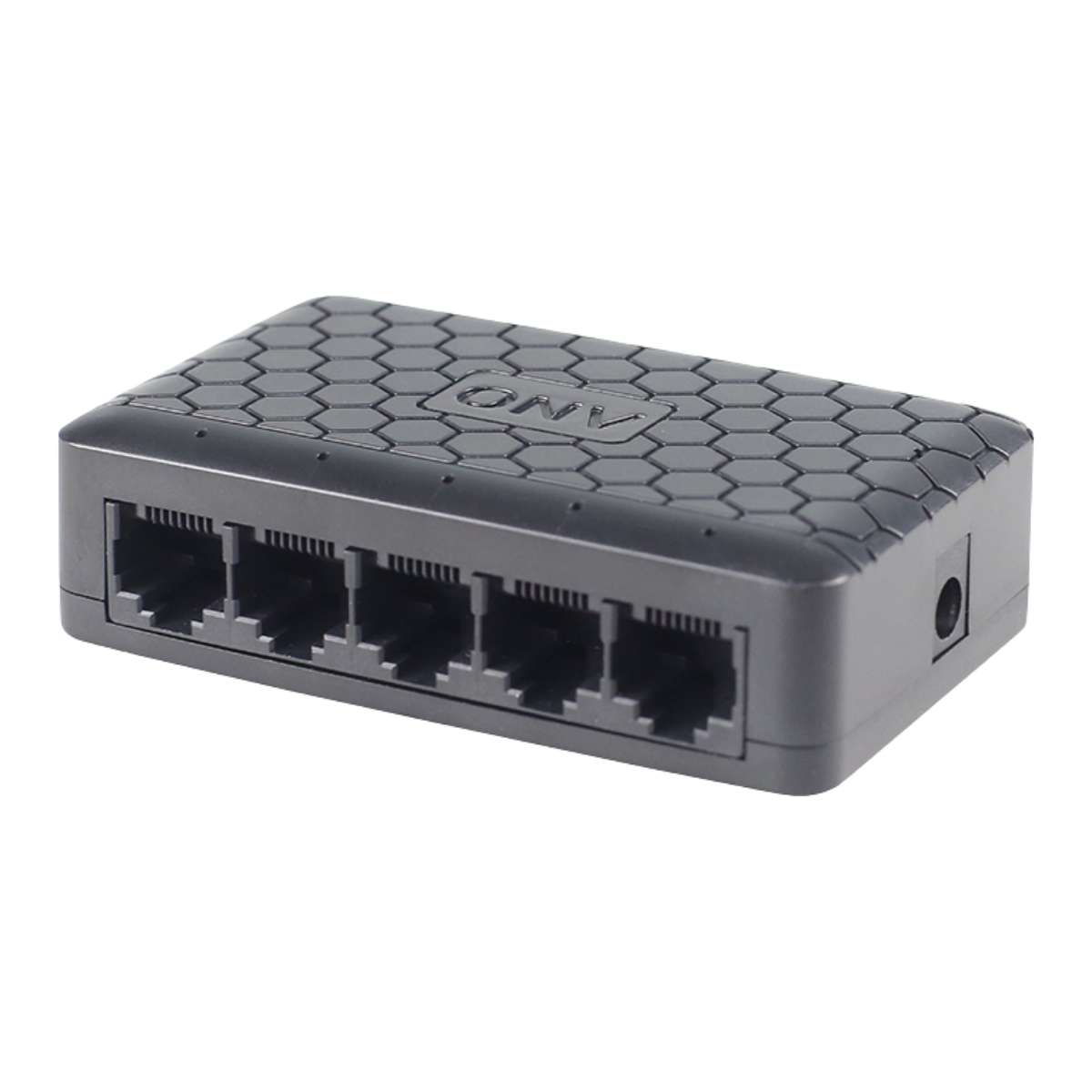

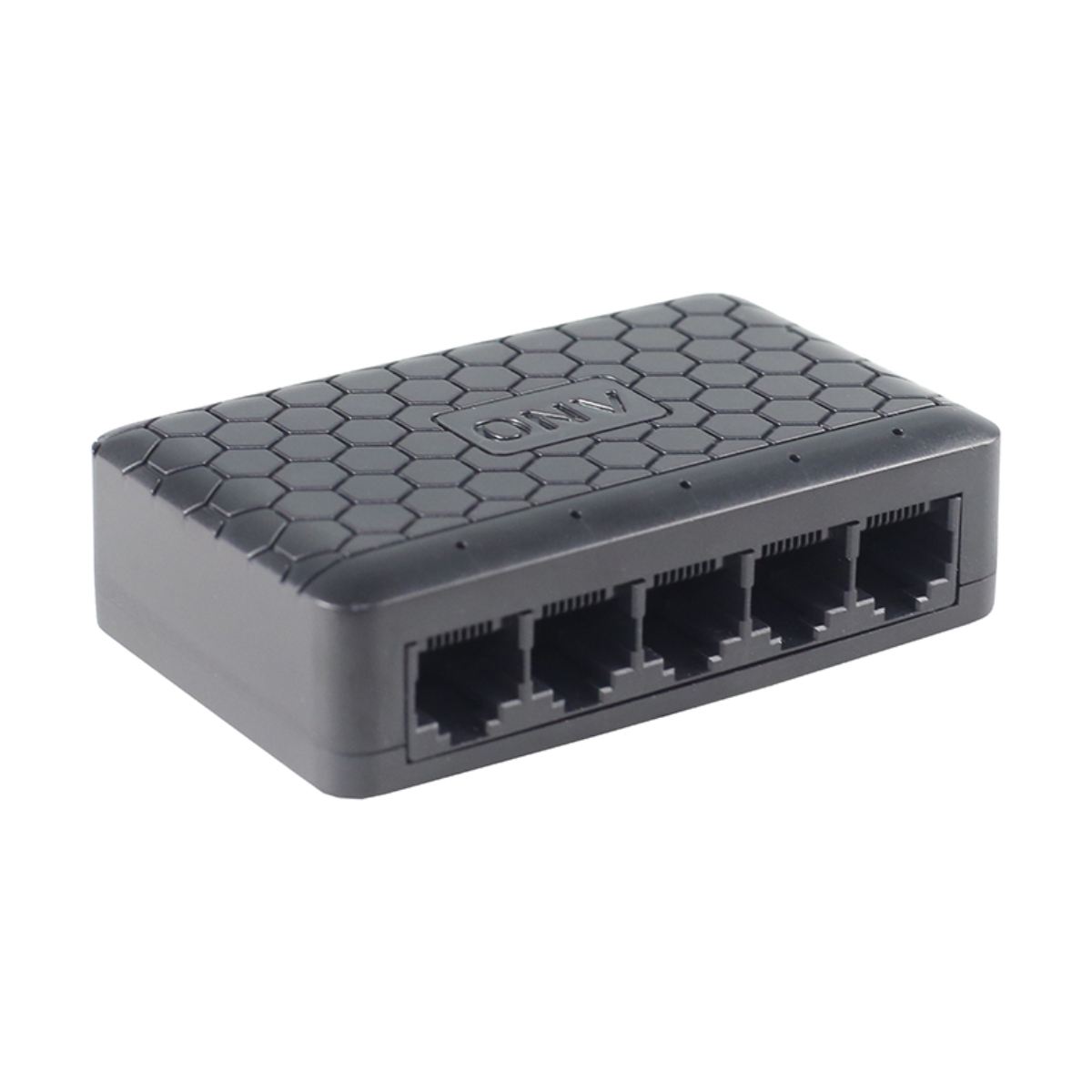

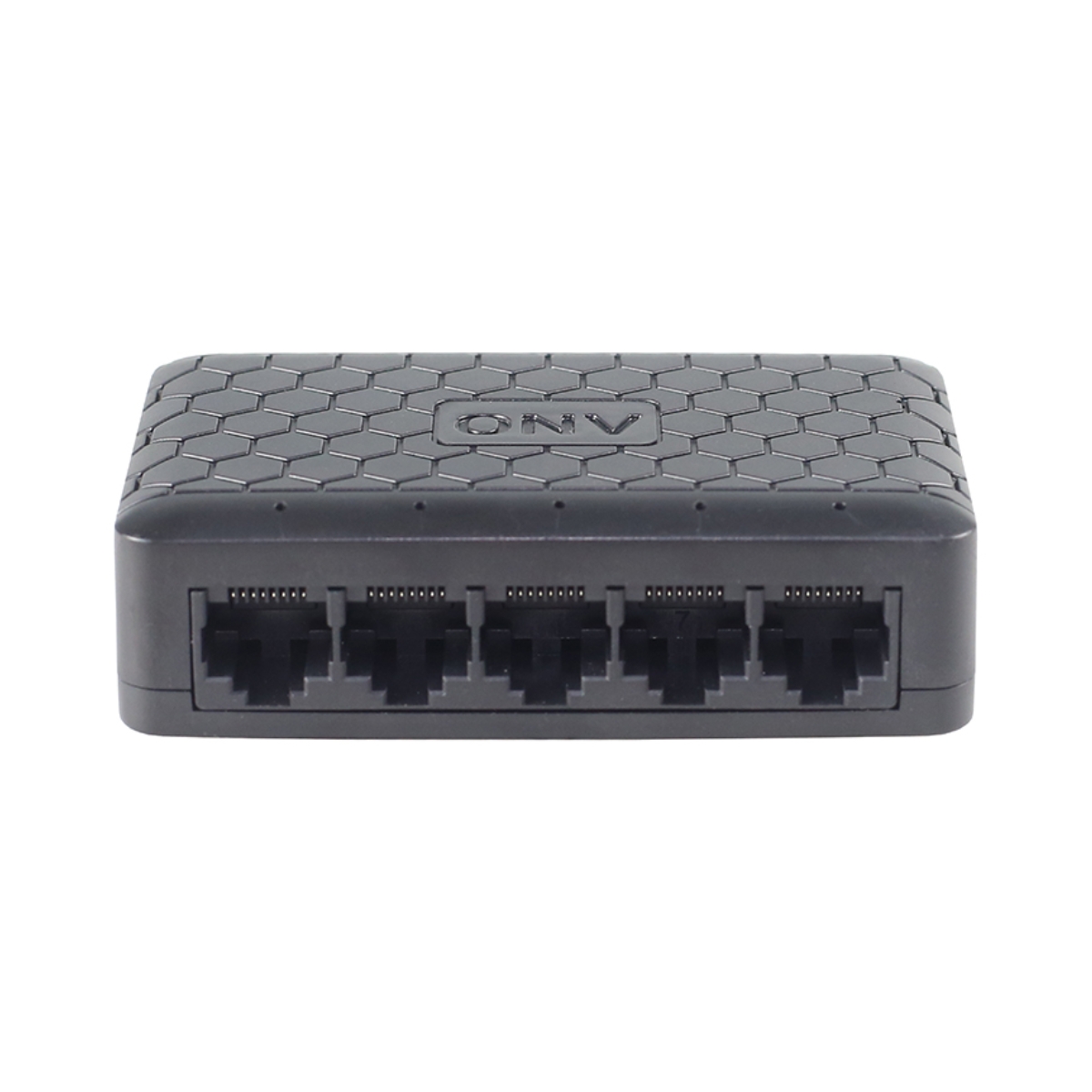

The ONV-H1005ES 5-Port Ethernet Switch is a simple and efficient networking device designed to expand wired connections in homes, offices, and CCTV surveillance systems. It comes with 5 RJ45 ports that support 10/100Mbps speed, ensuring stable and smooth data transmission between multiple devices.
This Ethernet switch is perfect for connecting devices like IP cameras, computers, routers, printers, and NVR systems. It helps reduce network congestion and improves overall connectivity performance by providing dedicated ports for each device.
The device is fully plug-and-play, meaning no software installation or configuration is required. Just connect the cables, and it starts working instantly. This makes it very user-friendly, even for non-technical users.
Built with a compact and durable design, the ONV-H1005ES can run continuously for long hours, making it highly suitable for CCTV surveillance setups where stable 24/7 performance is important. It also ensures low power consumption while maintaining reliable network speed.
With support for 10/100Mbps Ethernet standards, this switch delivers consistent performance for everyday networking needs. It is a cost-effective solution for expanding wired networks without compromising stability.
Overall, the ONV-H1005ES 5-Port Ethernet Switch is an ideal choice for users who need a reliable, easy-to-use, and budget-friendly networking solution for small to medium setups.
| Interface Characteristics | |
|---|---|
| Fixed Port | 5*10/100Base-TX RJ45 ports (Data) |
| Ethernet Port | 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption. |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) |
| Chip Parameter | |
| Network Protocol | IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 1Gbps (Non-blocking) |
| Forwarding Rate @64byte | 0.74Mpps |
| MAC | 1K |
| Buffer Memory | 512K |
| Jumbo Frame | 1536byte |
| LED Indicator | Power: PWR (Green), Network: Link/ Act(Green) |
| Power Supply | |
| Total PWR / Input Voltage | 5W/ (DC5V) |
| Power Consumption | Standby<1W, Full Load<2W |
| Power Supply | External power adapter, AC100~240V 50-60Hz, 0.56A |
| Physical Parameter | |
| Operation TEMP/ Humidity | 0°C~+55°C, 5%~90% RH Non condensing |
| Storage TEMP/ Humidity | -40°C~+75°C, 5%~95% RH Non condensing |
| Dimension (L*W*H) | 87.7*55*23.9mm |
| Net /Gross Weight | 0.08kg /0.18kg |
| Installation | Desktop, Wall mount |
| Warranty | |
| Warranty | 1 Year |
