FEATURE
10/100M line speed transmission
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Low power consumption, no fan, flame retardant plastic casing.
Easy to operate
◇ Plug and play, no configuration, simple and convenient.
◇ The user-friendly panel can show the device status through the LED indicator of Link/ Act, PWR.
TECHNICAL SPECIFICATION

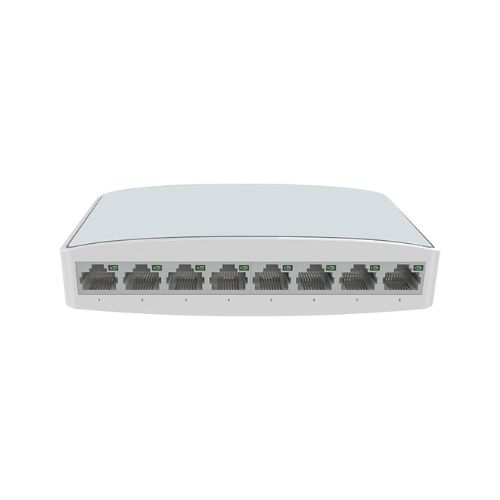

| Model | ONV-H1005S | ONV-H1008S |
| Interface Characteristics | ||
| Fixed Port | 5*10/100Base-TX RJ45 ports (Data) | 8*10/100Base-TX RJ45 ports (Data) |
| Ethernet Port | 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption. | |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) | |
| Chip Parameter | ||
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3x | |
| Forwarding Mode | Store and Forward(Full Wire Speed) | |
| Switching Capacity | 1Gbps (Non-blocking) | 1.6Gbps (Non-blocking) |
| Forwarding Rate@64byte | 0.74Mpps | 1.19Mpps |
| MAC | 1K | |
| Buffer Memory | 512K | 768K |
| Jumbo Frame | 1536byte | |
| LED Indicator | Power: PWR (Green), Network: Link/Act(Green) | |
| Power Supply | ||
| Total PWR / Input Voltage | 5W/ (DC5V) | |
| Power Consumption | Standby<1W, Full Load<2W | Standby<1W, Full Load<3W |
| Power Supply | External power adapter, AC100~240V 50-60Hz 0.56A | |
| Physical Parameter | ||
| Operation TEMP / Humidity | 0°C~+55°C, 5%~90% RH Non condensing | |
| Storage TEMP / Humidity | -40°C~+75°C, 5%~95% RH Non condensing | |
| Dimension (L*W*H) | 90*70*27mm | 140*78*32mm |
| Net /Gross Weight | <0.1kg /<0.25kg | <0.15kg /<0.3kg |
| Installation | Desktop, wall mount | |
| Certification & Warranty | ||
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 | |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS | |
| Warranty | 1 year, lifelong maintenance. | |
