| General | |
| Brand | ONV |
| Model | ONV-PSE-PD3102 |
| Interface Characteristics | |
| Fixed Port | 2*10/100Base-TX PoE ports (Data/Power) |
| 1*10/100Base-TX uplink power receiving port (Data/Power) | |
| Ethernet Port | Ports 1-3 support 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meters) |
| 100BASE-TX: Cat5 or later UTP(≤100 meters) | |
| Chip Parameter | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T |
| IEEE802.3u 100Base-TX, IEEE802.3x | |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 1.6Gbps(non-blocking) |
| Forwarding Rate@64byte | 0.45Mpps |
| MAC | 1K |
| Buffer Memory | 98K |
| LED Indicator | Power: PWR (Green), POE: PoE (Green) |
| PoE & Power Supply | |
| PoE Port | Port 1 to 2 |
| Power Supply Pin | 1/2(+) 3/6(-) |
| Max Power Per Port | 30W |
| Total Power | 24W |
| Power Consumption | Standby<1W, Full load<24W |
| Physical Parameter | |
| Operation TEMP / Humidity | -20°C~+55°C, 5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40°C~+80°C, 5%~95% RH Non condensing |
| Dimension (L*W*H) | 78*77*27mm |
| Net/Gross Weight | <0.11kg /<0.16kg |
| Installation | Desktop, wall mount |
| Certification & Warranty | |
| Lightning Protection | Port lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
| Warranty | 3 years. |

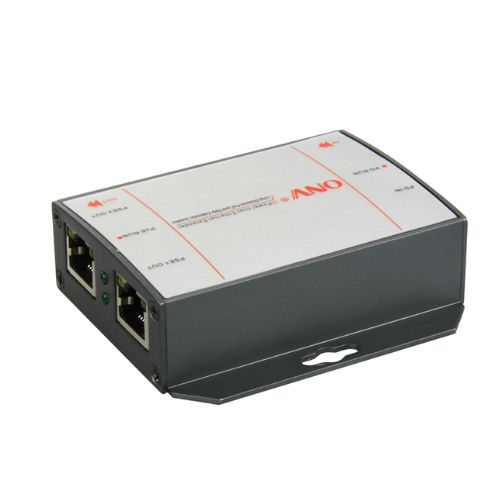

The ONV PSE-PD3102 3-Port PoE Extender provides an efficient solution for extending your network and powering PoE devices. With two PoE ports (up to 30W per port) and one uplink power receiving port, it enables seamless data and power delivery over Ethernet cables up to 100 meters. This compact device supports 10/100Base-TX auto-sensing, full/half duplex, and MDI/MDI-X self-adaptation.
It offers a total power output of 24W, with minimal power consumption in standby mode. Built for durability, the extender features 4KV lightning protection and operates in a wide temperature range. Ideal for small to medium installations, it’s easy to install on a desktop or wall mount. The ONV PSE-PD3102 is backed by a 3-year warranty and lifetime maintenance.No reviews yet. Be the first to review this product!
