| Specification | Details |
|---|---|
| Model | ONV-PSE-PD3302S |
| Interface Characteristics | Fixed Port |
| Ethernet Port | 10/100/1000Base-T(X) |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meters) |
| Network Protocol | IEEE802.3 |
| LED Indicator | Power, PoE |
| PoE Port | Port 1 support bt POE and is backward compatible with IEEE802.3af/at @POE |
| Power Supply Pin | Default 1/2 (+)3/6 (-), 4/5 (+)7/8 (-) |
| Max Power Per Port | 60W, IEEE802.3af/at/bt |
| Total PWR / Input Voltage | 65W /52VDC |
| Power Consumption | Standby<3W, Full Load<60W |
| Power Supply | External power adapter |
| Operation TEMP / Humidity | -20~+55°C, 5%~90% RH |
| Storage TEMP / Humidity | -40~+80°C, 5%~95% RH |
| Dimension (LWH) | 77.576.527mm |
| Installation | Desktop, Wall-mounted |
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CCC,CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
| Warranty | 1 year, lifelong maintenance |

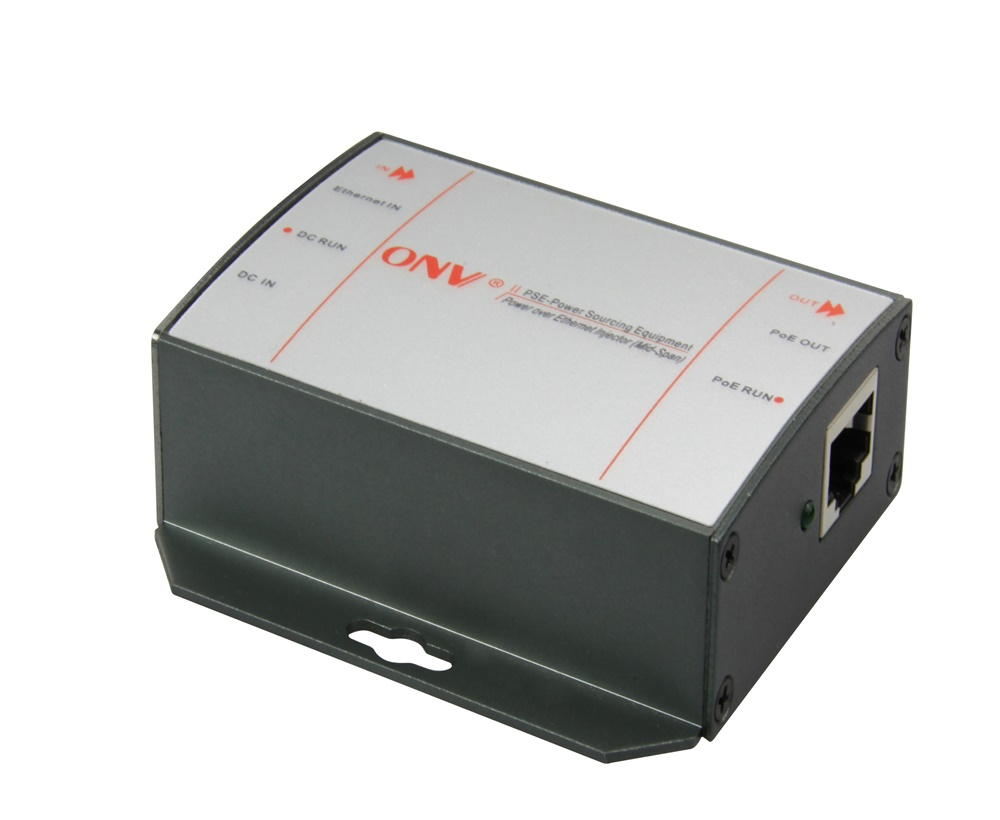

ONV-PSE-PD3302S Gigabit Single Port PoE Injector can supply power to POE terminal equipment such as wireless AP, network camera, VoIP, video door intercom, etc. through the network cable, to meet the network environment that requires a high-density PoE power supply, suitable for hotels, campuses, parks, attractions, supermarkets, and factories Dormitories and small and medium-sized enterprises form a cost-effective network.
Unmanaged models, plug-and-play, no configuration, simple and convenient to use; PoE injector provides simple, economic, high-performance, intelligent Ethernet PoE power supply and data communication solutions. It is easy to use, easy to install, superior in performance, and cost-effective. It is an ideal choice for customers looking to improve project quality. It can expand the traditional power line network, reduce the use of power lines, and effectively reduce the construction and maintenance cost of the project under the condition that the power supply cannot be provided at the remote end.
