Specification of the SAFENET CAT6A Shielded Toolless RJ45 Plug ConnectorSAFENET CAT6A Shielded Toolless RJ45 Plug Connector
| Model |
SAFENET CAT6A Shielded Toolless RJ45 Plug Connector
|
| Connector Type |
RJ45 (8P8C) |
| Category |
|
| Shielding |
Yes (Shielded Twisted Pair - STP)
|
| Housing Material |
Zinc Alloy with Nickel Plating
|
| Contact Material |
Phosphor Bronze with 3µ" Gold Plating
|
| Terminal Pin Material |
Phosphor Bronze with Zinc Plating
|
| Cable Compatibility |
Solid and Stranded Cables
|
| Wire Gauge Compatibility |
|
| Insulation Resistance |
|
| Contact Resistance |
≤20 mΩ |
| Withstand Voltage |
1000V DC / 700V AC RMS @ 60Hz
|
| IDC Terminal Life |
|
| RJ45 Contact Life |
|
| Permanent Link Compliance |
|
| Operating Temperature |
-10°C to +60°C |
| Storage Temperature |
-40°C to +70°C |
| Application |
Suitable for high-speed networking, custom cable assemblies, and PoE applications
|

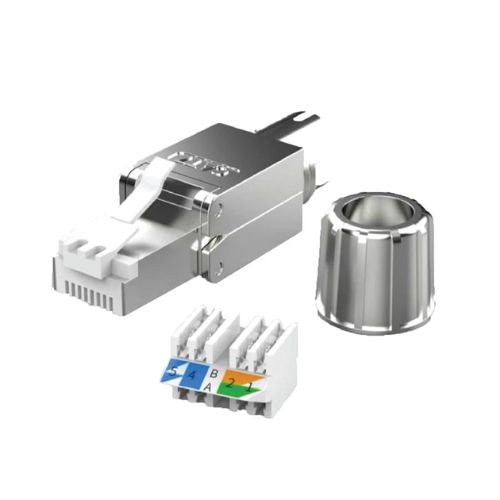

SAFENET CAT6A Shielded Toolless RJ45 Plug Connector
The SAFENET CAT6A Shielded Toolless RJ45 Plug Connector is a premium solution for high-speed Ethernet networking, designed to simplify cable termination without compromising performance. Built for Cat6A applications, it supports 10 Gigabit Ethernet, making it ideal for modern high-bandwidth environments such as data centers, server rooms, and office networks.
This connector features a shielded design that protects against electromagnetic interference (EMI) and crosstalk, ensuring stable and reliable data transmission even in demanding environments. The robust zinc alloy housing with nickel plating provides durability and long-lasting protection, while phosphor bronze contacts with gold plating guarantee excellent conductivity and minimal signal loss.
One of the key advantages of this

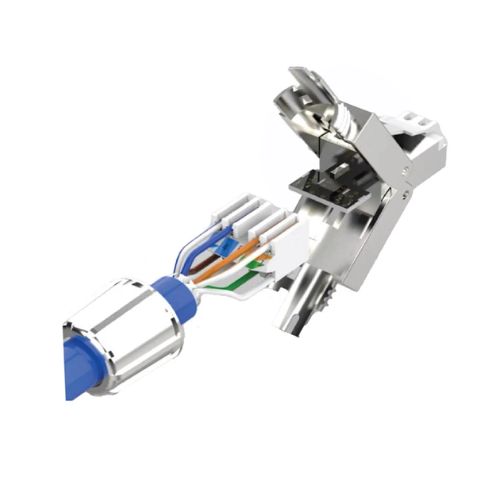

SAFENET connector is its toolless design, allowing quick and easy installation without the need for crimping tools. It supports both solid and stranded cables in wire gauges 22–24 AWG, providing flexibility for different cabling setups. With high resistance to wear and corrosion, this connector is suitable for repeated connections, making it a dependable choice for professional network installations.
Engineered to meet industry standards such as ANSI/TIA/EIA-568-B.2-10, the SAFENET CAT6A Shielded Toolless RJ45 Plug Connector ensures consistent performance across all networking applications. Its wide operating temperature range and reliable construction make it an excellent component for both commercial and industrial networking projects, delivering stable, high-speed connectivity every time.
