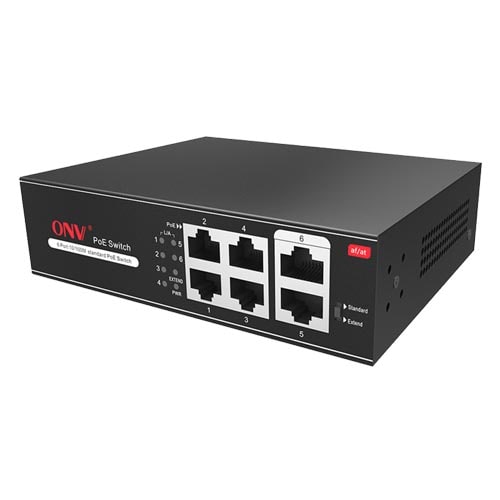

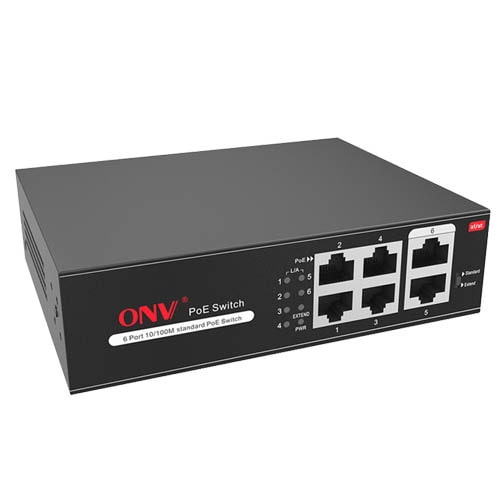

Features of the ONV-H1064PLS 6-Port PoE Switch 10M/250m Transmission
[embed]https://youtu.be/cFQDUnczI-Q[/embed]
ORDERING INFORMATION
| Model | Description |
| ONV-H1064PLS | Unmanaged PoE switch with 4*10/100M PoE ports and 2*10/100M uplink RJ45 ports. Port 1-4 can support IEEE802.3af/at PoE standard. Adjust function switch, Port 1-4 can support 10M/250m transmission. Built-in 65W power supply. |
| ONV-H1108PLS | Unmanaged PoE switch with 8*10/100M PoE ports and 2*10/100M uplink RJ45 ports. Port 1-8 can support IEEE802.3af/at PoE standard. Adjust function switch, Port 1-8 can support 10M/250m transmission. Built-in 120W power supply. |
| Note: The PoE switch is not included hanging ear by default and needs to be purchased separately. | |
PACKING LIST
| PACKING LIST | CONTENT | QTY | UNIT |
| 6-port 10/100Mbps PoE switch | 1 | SET | |
| AC Power Cable | 1 | PC | |
| User Guide | 1 | PC | |
| Warranty Card | 1 | PC |
TECHNICAL SPECIFICATION
| Model | ONV-H1064PL | ONV-H1108PL |
| Interface Characteristics | ||
| Fixed Port | 4*10/100Base-TX PoE ports (Data/Power) 2*10/100Base-TX uplink RJ45 ports (Data) | 8*10/100Base-TX PoE ports (Data/Power) 2*10/100Base-TX uplink RJ45 ports (Data) |
| Ethernet Port | Port 1-6/1-10 can support 10/100Base-TX auto-detection, full/half-duplex MDI/MDI-X auto-sensing | |
| Functional Switch | 1*(Extend+VLAN) | |
| Note: when the switch state changes, it must be restarted before the PoE switch function can take effect | ||
| Twisted Pair Transmission | 10BASE-TX: Cat5 or later UTP(≤250 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| Chip Parameter | ||
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3x | |
| Forwarding Mode | Store and Forward(Full Wire Speed) | |
| Switching Capacity | 1.6Gbps (Non-blocking) | 2Gbps (Non-blocking) |
| Forwarding Rate@64byte | 0.98Mpps | 1.488Mpps |
| MAC | 1K | |
| Buffer Memory | 768K | |
| Jumbo Frame | 9.6K | |
| LED Indicator | Power:PWR (Green), network : L/A(Yellow), PoE : PoE (Green) Functional switch: EXTEND (Green) | |
| PoE & Power Supply | ||
| PoE Port | Port 1 to 4 | Port 1 to 8 |
| Power Supply Pin | Default 1/2(+), 3/6(-) | |
| Max Power Per Port | 30W, IEEE802.3af/at | |
| Total PWR / Input Voltage | 65W/ (AC100-240V) | 120W/ (AC100-240V) |
| Power Consumption | Standby<3W, Full load <65W | Standby <5W, Full load <120W |
| Power Supply | Built-in power supply, AC100~240V 50-60Hz 1A | Built-in power supply, AC100~240V 50-60Hz 2.2A |
| Physical Parameter | ||
| Operation TEMP / Humidity | -20~+55°C;5%~90% RH Non condensing | |
| Storage TEMP / Humidity | -40~+75°C;5%~95% RH Non condensing | |
| Dimension (L*W*H) | 140*115*40mm | 195*130*40mm |
| Net /Gross Weight | <0.6kg / <1kg | <0.8kg / <1.2kg |
| Installation | Desktop, wall-mounted | |
| Certification & Warranty | ||
| Lightning Protection / Protection Level | Lightning protection: 4KV 8/20us, Protection level: IP30 | |
| Certification | CCC, CE mark, commercial, CE/LVD EN60950 FCC Part 15 Class B, RoHS | |
| Warranty | 1 year, lifelong maintenance. | |
The ONV-H1064PLS is an unmanaged PoE switch independently developed by ONV. It has 6*10/100M RJ45 ports. Port 1-4 can support IEEE 802.3 af/at PoE standard, and single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, IP cameras, VoIP phones, video access control intercoms, etc. through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory quarters, and small and medium-sized enterprises to form an economy-efficient network. Unmanaged mode, plug and play, no configuration, easy to use.
The latest price of the ONV-H1064PLS 6-Port PoE Switch 10M/250m Transmission is 4200 BDT. You can buy the ONV-H1064PLS 6-Port PoE Switch from us at the best price. You can either purchase it through our website or directly visit our office. Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh. Contact Us: +88 01894-683430
