| Model | ONV-H3024 |
| Interface Characteristics | 24 * 10/100/1000Base-T RJ45 ports (Data) |
| Ethernet Port | |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤100 meter) |
| 100BASE-TX: Cat5 or later UTP (≤100 meter) | |
| 1000BASE-T: Cat5e or later UTP (≤100 meter) | |
| Chip Parameter | |
| Network Protocol | IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, |
| IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-TX, | |
| IEEE 802.3x | |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 48Gbps (non-blocking) |
| Forwarding Rate @64byte | 35.71Mpps |
| MAC | |
| Buffer Memory | |
| LED Indicator | Power: PWR (Green), Network: Link/ Act (Green) |
| Power Supply | |
| Total PWR / Input Voltage | 18W /(AC100-240V) |
| Power Consumption | Standby <10W, Full Load <16W |
| Power Supply | Built-in power supply, AC100~240V 50-60Hz, 0.56A |
| Physical Parameter | |
| Operation Temp/ Humidity | -20~+55°C, 5%~90% RH Non-condensing |
| Storage Temp/ Humidity | |
| Dimension (LWH) | |
| Net / Gross Weight | 1.4kg / 2.0kg |
| Installation | Desktop, Wall mount, 1U/19 inch |
| Certification & Warranty | |
| Lightning Protection | Lightning protection: 4KV 8/20us; Protection level: IP30 |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
| Warranty | 1 year, lifelong maintenance |

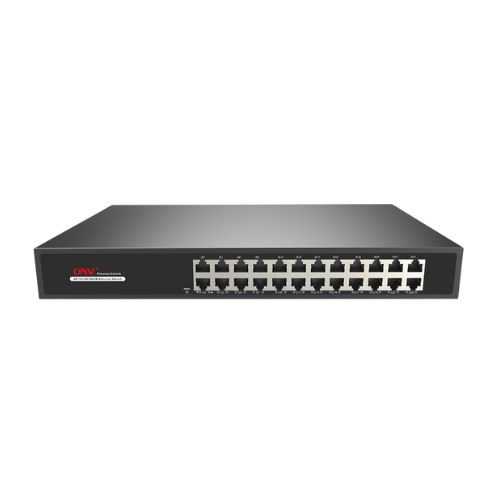

The ONV-H3024 is a high-performance and high-speed forwarding Ethernet switch independently developed by ONV. It is suitable for hotels, banks, campuses, factory dormitories, and small and medium-sized enterprises.
The ONV-H3024 has 24*10/100/1000M adaptive RJ45 ports. Each port can support full line-speed forwarding. 4M large-capacity cache to ensure timely transmission of large files and stable video streaming. 7*24 hours of stability, and no disconnection effectively solving problems such as video freezes and picture loss in high-definition surveillance environments. It plugs and plays has no configuration, and is simple and convenient.
