| Brand | Tenda |
| Model | TEF1226P |
| Standard&Protocol | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x,IEEE802.1p, IEEE802.1q, IEEE802.1w, IEEE802.1d, IEEE802.3af/at |
| LED indicator | 24 * Link/Act LEDs 1 * G1 LED 1 * G2/SFP2 LED 1 * PoE-MAX LED 1 * Power LED 1 * SYS LED |
| Interface | 24 * 10/100 Mbps Base-TX RJ45 ports (Data/Power) 2 * 10/100/1000 Mbps Base-T RJ45 ports (Data) 1 * 1000 Mbps Base-X SFP port (Combo) |
| Forwarding Rate | 6.55 Mpps |
| Switching Capacity | 8.8 Gbps |
| MAC Address Table | 16K |
| Lightning Protection | ≥6KV |
| Input Voltage | AC: 100-240V~50/60Hz |
| Power Supply | Ports 1-24 support standard IEEE802.3af/at 30W output per PoE port 370W output of the total PoE Power |
| Power Consumption | 410W output the whole device |
| Security | MAC-Port Binding |
| Link Aggregation | Static Trunk Supports 3 groups of 4-Port trunk support |
| STP | STP/RSTP |
| Warranty | 01 Year |

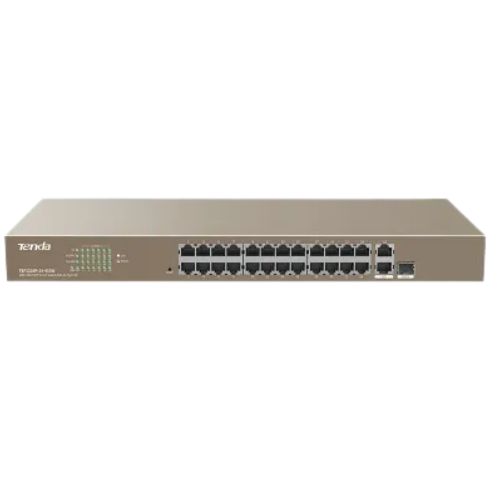

The Tenda TEF1226P 24 Port PoE Switch is a smart PoE switch independently designed by Tenda. Featured with 24 IEEE 802.3at/af-compliant RJ45 ports, it supplies a maximum PoE power output of 370 W. The switch can supply power when transmitting data with APs, IP cameras, and IP phones through CAT5 cables. Featured smart management functions, including 250-meter long-distance power supply, 802.1Q VLAN, link aggregation, QoS, and MAC address binding, minimize the difficulty and cost of networking deployment.
