| Feature | Specification |
|---|---|
| Brand | ASRock |

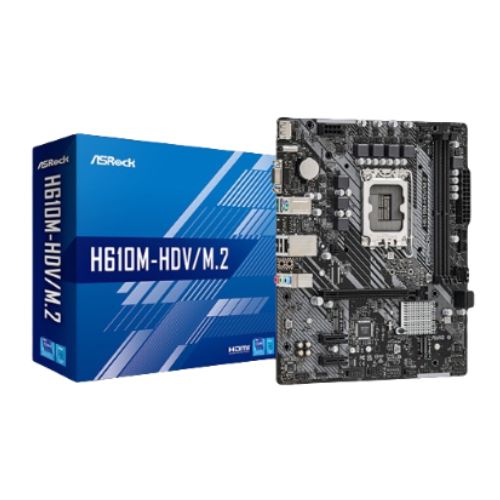

| Model | ASRock H610M-HDV/M.2 |
| Body Color | Black |
| Chipset Brand | Intel |
| Chipset | Intel H610 |
| Sockets Supported | LGA1700 |
| Built-in Processor | No |
| Supported CPU | Intel Core Processors (12th, 13th, and 14th Gen) |
| Generation | 12th/13th/14th |
| Memory Type | DDR4 |
| Memory MHz | 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHz |
| Memory Channel | Dual |
| Memory Slot | 2 |
| Memory Slot (Additional Info) | 2 x DDR4 DIMM |
| Memory Max. | 64GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 1 |
| M.2/SSD Expansion Slot Details | 1 x M.2 (supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4) |
| Graphics | Integrated |
| Graphics Chipset | Integrated With Processor |
| PCI Express Slot | 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) |
| Audio Chipset | Realtek ALC897/887 Audio Codec |
| Audio Channel | 7.1 |
| LAN Chipset | Giga PHY Intel I219V |
| LAN Speed (Mbps) | 10/ 100/ 1000 Mbps |
| WiFi | No |
| Bluetooth | No |
| USB Port | 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
| VGA Port | 1 |
| DVI Port | No |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| IDE Port | No |
| SATA Port | 4 x SATA |
| Thunderbolt | No |
| TPM Port | 1 |
| COM Port | 1 |
| FireWire | No |
| CrossFire Support | No |
| Sli Support | No |
| RGB Support | No |
| RGB Connector | No |
| Approx. Power Consumption | 60W |
| Form Factor | Micro-ATX |
| BIOS Type | 128Mb |
| BIOS Model | AMI UEFI Legal BIOS |
| BIOS Version | ACPI 6.0, SMBIOS 2.7 |
| Supported Operating System | Windows 10/11 |
| Compatible Products | LGA1700 Sockets : 12th, 13th, and 14th Gen |
| Warranty | 3 Year |
