| Brand | Biostar |

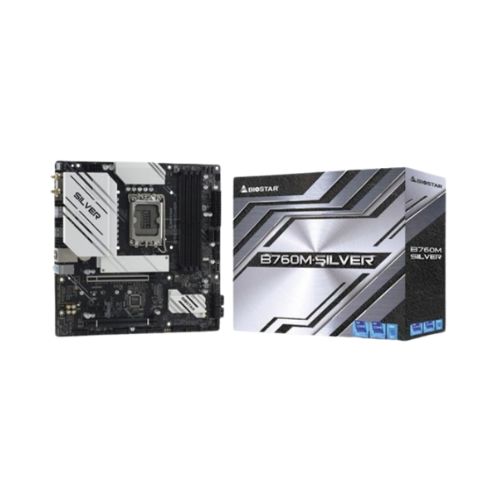

| Model | B760M-SILVER |
| Body Color | Black |
| Chipset Brand | Intel |
| Chipset | Intel B760 |
| Sockets Supported | LGA1700 |
| Built-in Processor | No |
| Supported CPU | 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors. |
| Generation | 12th/13th/14th |
| Memory Type | DDR5 |
| Memory MHz | 6000+(OC) / 6000(OC) /5800(OC) / 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MHz non-ECC Memory. |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Slot (Additional Info) | 4 x DIMM |
| Memory Max. | 192GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot Details | 2 |
| Graphics | Integrated |
| Graphics Chipset | Integrated With Processor |
| Multi-GPU Support | No |
| PCI Express Slot | 1 x PCIe 5.0 x16 Slot (x16 mode), 1 x PCIe 4.0 x16 Slot (x4 mode), 1 x PCIe 3.0 x1 Slot |
| Audio Chipset. | ALC1220 |
| Audio Channel | 7.1 |
| LAN Chipset | Realtek RTL8125B |
| LAN Speed (Mbps) | 10/100/1000/2500Mbps |
| WiFi | No |
| WiFi Technology | Not Applicable |
| Bluetooth | No |
| USB Port | 1 x USB 3.2 Gen 2 Type-C, 5 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0 Type-A |
| VGA Port | No |
| DVI Port | No |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| IDE Port | No |
| SATA Port | 6 x SATA |
| Thunderbolt | No |
| TPM Port | Yes |
| COM Port | Yes |
| FireWire | No |
| CrossFire Support | No |
| Sli Support | No |
| Raid Support | 0, 1, 5, 10 & Intel Rapid Storage Technology |
| RGB Support | RGB |
| RGB Sync | BIOSTAR RGB SYNC |
| RGB Connector | 2 x LED Header (5V), 1 x LED Header (12V) |
| Approx. Power Consumption | 60W |
| Form Factor | Micro-ATX |
| Bios Information | |
| BIOS Model | UEFI BIOS |
| Supported Operating System | Windows 10 / 11 |
| Compatible Products | Compatible with LGA1700 Socket 12th, 13th & 14th Gen Intel Processor. |
| Warranty | 3 Year |
