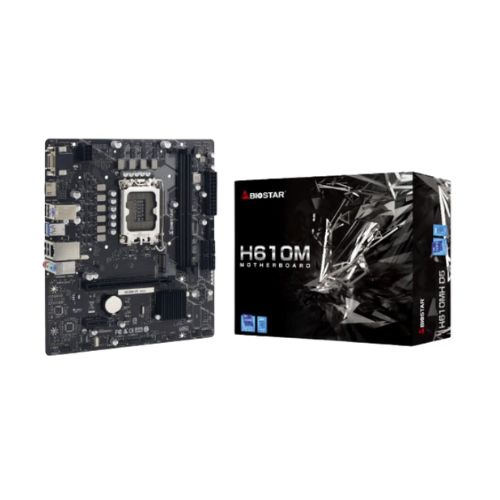

| Brand | Biostar |
| Model | H610MH D5 |
| Body Color | Black |
| Chipset Brand | Intel |
| Chipset | Intel H610 |
| Sockets Supported | LGA1700 |
| Built-in Processor | No |
| Supported CPU | 12th/ 13th/ 14th Gen Intel Core i9/ i7/ i5/ i3 processors, Intel Pentium processors, Intel Celeron processors |
| Generation | 12th/13th/14th |
| Memory Type | DDR5 |
| Memory MHz | 6000+(OC) / 6000(OC) /5800(OC) / 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MHz non-ECC Memory |
| Memory Channel | Dual |
| Memory Slot | 2 |
| Memory Max. | 96GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 1 |
| M.2/SSD Expansion Slot Details | 1 x M.2 (1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA): Supports M.2 Type 2242 /2260 /2280 SSD module, Supports PCI-E 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD & SATA SSD) |
| Graphics | Integrated |
| Graphics Chipset | Integrated With Processor |
| Multi-GPU Support | No |
| PCI Express Slot | 1 x PCIe 4.0 x 16 (Intel 12th/13th/14th Processors), 1 x PCIe 3.0 x 1 (Intel H610) |
| Audio Chipset | ALC897 |
| Audio Channel | 7.1 |
| LAN Chipset | Intel I219V |
| LAN Speed (Mbps) | 10/ 100/ 1000 Mbps |
| WiFi | No |
| Bluetooth | No |
| USB Port | 4 x USB 2.0, 2 x USB 3.2 Gen 1 |
| VGA Port | 1 |
| DVI Port | No |
| HDMI Port | 1 |
| DisplayPort (DP) | No |
| SATA Port | 4 x SATA III |
| Thunderbolt | No |
| TPM Port | Yes |
| COM Port | 1 |
| CrossFire Support | No |
| Sli Support | No |
| RGB Support | No |
| Approx. Power Consumption | 65W |
| Form Factor | Micro-ATX |
| Supported Operating System | Windows 10/ 11 |
| Compatible Products | Core i3, Core i5, Core i7, Core i9, Pentium Gold (12th Gen, 13th Gen & 14th Gen) |
| Warranty | 3 Year |
