Specification of the MSI B760M GAMING PLUS WIFI 6E mATX Motherboard
| Brand |
MSI |
| Model |
B760M GAMING PLUS (Wi-Fi 6E) |
| Body Color |
Black |
| Chipset Brand |
Intel |
| Chipset |
Intel B760 |
| Sockets Supported |
LGA1700 |
| Built-in Processor |
No |
| Supported CPU |
14th, 13th, and 12th Gen Intel Core Processors, Intel Pentium Gold and Celeron Processors |
| Generation |
12th/13th/14th |
| Memory Type |
DDR5 |
| Memory MHz |
Up to 6800+ MHz (OC), 4800 MHz (JEDEC) |
| Memory Channel |
Dual |
| Memory Slots |
4 |
| Memory Max. |
192GB |
| Optane Memory Support |
No |
| Storage Interface |
6.0 Gb/s |
| M.2 Slots |
2 |
| M.2 Details |
2 x M.2 (1 x PCIe 4.0 x4 (CPU), 1 x PCIe 4.0 x4/SATA (Chipset)) |
| Graphics |
Integrated (with compatible CPU) |
| Graphics Chipset |
Integrated With Processor |
| Multi-GPU Support |
No |
| PCI Express Slot |
2 x PCI-E x16, 1 x PCI-E x1 |
| Audio Chipset |
Realtek ALC897 Codec |
| Audio Channels |
7.1 |
| LAN Chipset |
Realtek RTL8125BG |
| LAN Speed |
2.5 Gbps |
| WiFi |
Yes |
| WiFi Technology |
Intel Wi-Fi 6E |
| Bluetooth |
Bluetooth 5.3 |
| USB Ports |
2 x USB 3.2 Gen 1, 2 x USB 2.0, 2 x USB 3.2 Gen 2 |
| VGA Port |
No |
| DVI Port |
No |
| HDMI Port |
2 |
| DisplayPort (DP) |
2 |
| SATA Port |
4 |
| Thunderbolt |
No |
| TPM Port |
1 |
| COM Port |
1 |
| RGB Support |
RGB |
| RGB Connector |
1 x RGB LED connector (JRGB) |
| Power Consumption |
60W |
| Form Factor |
Micro-ATX |
| OS Support |
Windows 10, 11 |
| Warranty |
3 Years |

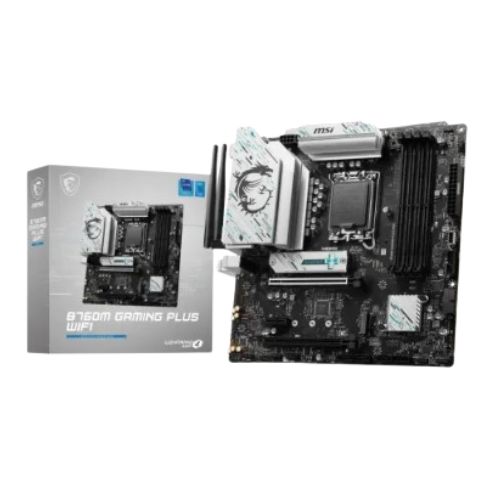

MSI B760M GAMING PLUS WIFI 6E mATX Motherboard
The
MSI B760M Gaming Plus WiFi 6E mATX Motherboard is a flexible option for enthusiasts and gamers alike. This motherboard provides a powerful computing experience by being compatible with 14th, 13th, Intel Core, and Pentium processors utilizing the LGA 1700 socket. Its four DDR5 RAM slots have a maximum capacity of 192GB and an overclocking potential of 6800+MHz, giving it the speed required for demanding activities.
The motherboard has two HDMI2.1 connections and excellent graphics output, enabling the display technologies for a better experience. The presence of a dual 2.5G LAN, in conjunction with the most recent Wi-Fi 6E technology, offers high-speed networking, meeting the demands of online gaming and streaming. The MSI B760M GAMING PLUS WIFI 6E mATX Motherboard includes Dual DisplayPort 1.4, which increases display support for high-resolution visuals.
What is the price of the MSI B760M GAMING PLUS WIFI 6E mATX Motherboard in Bangladesh?
The latest price of the MSI B760M GAMING PLUS WIFI 6E mATX Motherboard Price in Bangladesh is
19,100 BDT. You can buy the MSI B760M GAMING PLUS WIFI 6E mATX Motherboard from us at the best price. You can either buy it through our
website or directly visit our office.
