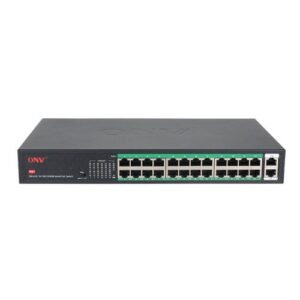

Specification of the ONV H1024PLS 24-port PoE Switch
| General | |
| Brand | ONV |
| Model | ONV-H1024PLS |
| Interface Characteristics | |
| Fixed Port | 24*10/100Base-TX PoE ports (Data/Power) |
| 2*10/100/1000Base-T uplink RJ45 ports (Data) | |
| Ethernet Port | Port 1-24 can support 10/100Base-TX and port 25-26 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤250 meters) |
| 100BASE-TX: Cat5 or later UTP (≤100 meters) | |
| 1000BASE-T: Cat5e or later UTP (≤100 meters) | |
| Functional Switch | Function switch (100m/250m ) default is off |
| When 100m turned on, the default is 100 meters transmission. | |
| When 250m turned on, port 17-24 support 10M/250 meters transmission. | |
| Chip Parameter | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T |
| IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x | |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 14.8Gbps (Non-blocking) |
| Forwarding | 6.55Mpps |
| Rate@64byte | |
| MAC | 16K |
| Buffer Memory | 4M |
| Jumbo Frame | 10K |
| LED Indicator | Power: PWR (Green), Network: Link(Green), PoE: PoE (Green) |
| PoE & Power Supply | |
| PoE Port | Port 1-24 |
| Power Supply Pin | 1/2(+) 3/6(-) |
| Max Power Per Port | 30W, PoE+ |
| Total PWR / Input Voltage | 250W (AC100-240V) |
| Power Consumption | Standby <20W, Full load <250W |
| Power Supply | Built-in power supply, AC100~240V 50-60Hz, 4.1A |
| Physical Parameter | |
| Operation TEMP / Humidity | -20~+55°C, 5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40~+75°C, 5%~95% RH Non condensing |
| Dimension (L*W*H) | 330*204*44mm |
| Net/Gross Weight | 1.85kg/2.4kg |
| Installation | Desktop, wall mounted, rack-mounted |
| Certification & Warranty | |
| Lightning Protection | Port lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
| Warranty | 1 year, lifelong maintenance. |
Unmanaged mode, plug and play, no configuration, easy to use.
