Features of the ONV-H1108PGL 10-Port PoE switch
Specification of the ONV-H1108PGL 10-port PoE switch
| General | |
| Brand | ONV |
| Model | ONV-H1108PGL |
| Interface Characteristics | |
| Fixed Port | 8*10/100Base-TX PoE ports (Data/Power) |
| 2*10/100/1000Base-T uplink RJ45 ports (Data) | |
| Ethernet Port | Port 1-8 can support 10/100Base-TX and port 9-10 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
| Functional Switch | 250m: Port 1-8 can support 10M/250 meters transmission when the functional switch is on 250m. |
| Note: When the switch status changes, the PoE switch must be restarted for the function switch to take effect. | |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤250 meters) |
| 100BASE-TX: Cat5 or later UTP (≤100 meters) | |
| 1000BASE-T: Cat5e or later UTP (≤100 meters) | |
| Chip Parameter | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3x |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 11.8Gbps (Non-blocking) |
| Forwarding | 4.17Mpps |
| Rate@64byte | |
| MAC | 3k |
| Buffer Memory | 2M |
| LED Indicator | Power: PWR (Green), Network: Link (Yellow) |
| PoE: PoE (Green), Functional switch: 100m/250m (Green) | |
| PoE & Power Supply | |
| PoE Port | Port 1-8 |
| Power Supply Pin | 1/2(+) 3/6(-) |
| Max Power Per Port | 30W, PoE+ |
| Total PWR / Input Voltage | 120W/ (AC100-240V) |
| Power Consumption | Standby<5W, Full load<120W |
| Power Supply | Built-in power supply, AC100~240V 50-60Hz, 2.2A |
| Physical Parameter | |
| Operation TEMP/ Humidity | -20~+55°C, 5%~90% RH Non condensing |
| Storage TEMP/ Humidity | -40~+75°C, 5%~95% RH Non condensing |
| Dimension | 195*130*40mm |
| Net /Gross Weight | 0.75kg / 1.0kg |
| Installation | Desktop, Wall mounted |
| Certification & Warranty | |
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
| Warranty | 1 year, lifelong maintenance. |

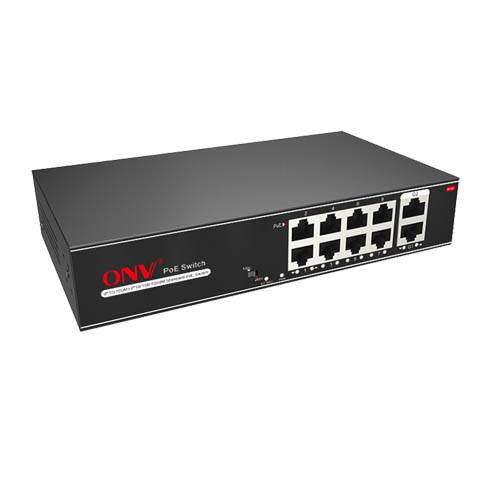

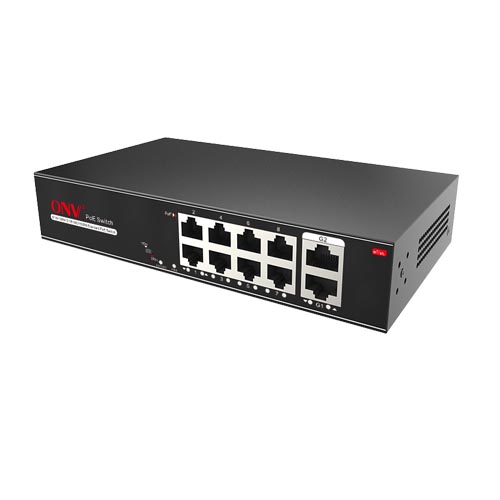

The ONV-H1108PGL 10-Port PoE Switch is a high-performance networking device designed to provide seamless connectivity and power to multiple devices in your network. With 8 PoE-enabled ports, it delivers both data and power, making it ideal for devices such as IP cameras, wireless access points, and VoIP phones. The switch also includes 2 additional Gigabit uplink ports to ensure fast and reliable data transfer across your network.
Engineered for efficiency, this switch supports IEEE 802.3af/at PoE standards, delivering up to 30W per port. It features a total switching capacity of 11.8 Gbps and supports full wire-speed operation for smooth, uninterrupted performance. The ONV-H1108PGL can also extend its transmission range to 250 meters when enabled, allowing for greater flexibility in larger installations. Built with durability in mind, this PoE switch operates in a wide temperature range and is protected against lightning surges up to 4KV, making it suitable for various environmental conditions. Whether mounted on a wall or placed on a desktop, it offers easy installation and reliable performance. The switch is backed by a 1-year warranty and lifetime maintenance, ensuring long-term support for your network needs.
The latest price of the ONV-H1108PGL 10-Port PoE Switch Gigabit Uplink 10M/250m Transmission in Bangladesh is 6000 BDT. You can buy the ONV-H1108PGL 10-port PoE switch gigabit uplink 10M/250m Transmission from us at the best price. You can either purchase it through our website or directly visit our office. Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh. Contact Us: +88 01894-683430
