Key features of the ONV-H3016PFD 19-port Full Giga PoE switch
Specification of the ONV-H3016PFD 19-port Full Giga PoE switch
| Category | Details |
|---|---|
| Model | ONV-H3016PFD |
| Brand | ONV |
| Switch Type | Unmanaged PoE Switch |
| Total Ports | 19 Ports |
| PoE Ports | 16 × 10/100/1000Mbps PoE+ RJ45 |
| Uplink Ports | 2 × 10/100/1000Mbps RJ45 |
| SFP Port | 1 × 1000Base-X SFP Fiber Port |
| PoE Standard | IEEE 802.3af / 802.3at |
| Max PoE Power Per Port | 30W |
| Total PoE Budget | 250W |
| Switching Capacity | 38Gbps |
| Forwarding Rate | 28.28Mpps |
| MAC Address Table | 4K |
| Buffer Memory | 4M |
| Jumbo Frame | 9.2K |
| Transmission Distance | Up to 250m (Extend Mode) |
| Network Protocols | IEEE802.3, 802.3u, 802.3ab, 802.3z, 802.3x |
| Transmission Media | Cat5e/Cat6 or higher |
| LED Indicators | Power, Link, PoE, Extend |
| Power Supply | Built-in AC 100–240V |
| Power Consumption | Standby <12W, Full Load <250W |
| Cooling System | Smart fan cooling |
| Lightning Protection | 4KV Surge Protection |
| Operating Temperature | -20°C to 55°C |
| Installation | Desktop / Rack Mount |
| Dimensions | 350 × 215 × 44 mm |
| Weight | Approx. 2.0 kg |
| Housing Material | Metal |
| Warranty | 1 Year |

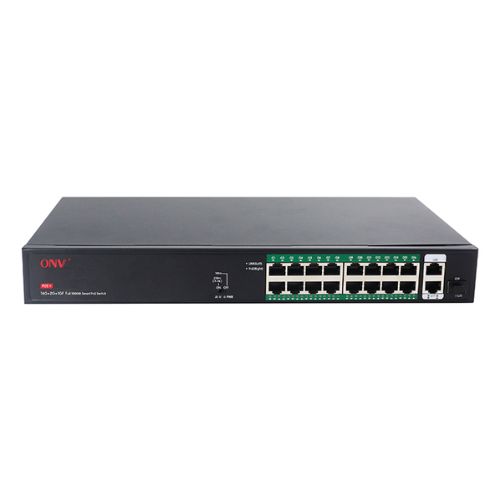

The ONV-H3016PFD 19-port Full Gigabit PoE Switch is a professional-grade networking solution designed for high-performance surveillance and enterprise network environments. Built for stability and efficient power delivery, this switch is ideal for connecting IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices in medium to large installations.
This switch features 16 Gigabit PoE ports, along with 2 Gigabit uplink RJ45 ports and 1 Gigabit SFP uplink fiber port, providing flexible networking options for both copper and fiber connectivity. Its full Gigabit architecture ensures faster data transmission and stable network performance, especially important for high-resolution IP camera systems and heavy network traffic.
Each PoE port supports the IEEE 802.3af/at PoE+ standard with up to 30W power output per port, allowing the switch to power compatible devices directly through Ethernet cables. This reduces extra wiring and simplifies installation.
One of its standout features is the 250-meter long-distance transmission mode, which can extend network transmission on selected ports when enabled. This is especially useful for CCTV installations where cameras are placed far from the control room or NVR.
The switch operates in an unmanaged plug-and-play mode, meaning no configuration is required. Simply connect your devices, and the switch automatically handles network communication and PoE power delivery. This makes deployment faster and easier for installers and businesses.
It also includes a durable metal housing with built-in cooling support to maintain stable performance during continuous operation. The switch supports desktop and rack-mount installation, making it suitable for server rooms, security systems, offices, schools, and commercial environments.
The latest price of the ONV-H3016PFD 19-port Full Giga PoE switch in Bangladesh is 19000 BDT. You can buy the ONV-H3016PFD 19-port Full Giga PoE switch from us at the best price. You can either buy it through our website or directly visit our office. Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh. Contact Us: +88 01894-683430
