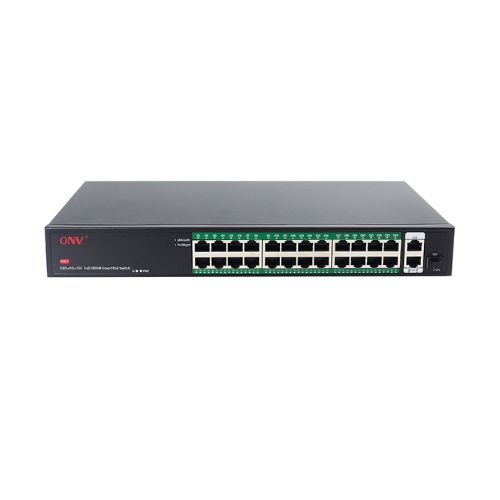

Key features of the ONV-H3024PFD Full Gigabit 27-port PoE switch
Specification of the ONV-H3024PFD Full Gigabit 27-port PoE switch
| Category | Details |
|---|---|
| Model | ONV-H3024PFD |
| Brand | ONV |
| Switch Type | Unmanaged PoE Switch |
| Total Ports | 27 Ports |
| PoE Ports | 24 × 10/100/1000Mbps PoE+ RJ45 |
| Uplink Ports | 2 × 10/100/1000Mbps RJ45 |
| SFP Port | 1 × 1000Base-X SFP Fiber Port |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Max PoE Power Per Port | 30W |
| Total PoE Budget | 250W |
| Switching Capacity | 54Gbps |
| Forwarding Rate | 40.18Mpps |
| MAC Address Table | 8K |
| Buffer Memory | 4M |
| Jumbo Frame | 10K |
| Transmission Distance | Up to 250m (Extend Mode) |
| Network Protocols | IEEE802.3, 802.3u, 802.3ab, 802.3z, 802.3x |
| Transmission Media | Cat5e/Cat6 or higher |
| LED Indicators | PWR, Link, PoE, Function Switch |
| Power Supply | Built-in AC 100–240V |
| Cooling System | Smart cooling fan |
| Lightning Protection | 4KV Surge Protection |
| Operating Temperature | -20°C to 55°C |
| Installation | Desktop / Rack Mount (1U) |
| Dimensions | 350 × 215 × 44 mm |
| Weight | Approx. 2.0 kg |
| Housing Material | Metal |
| Warranty | 1 Year |
The ONV-H3024PFD Full Gigabit 27-Port PoE Switch is a high-performance networking solution designed for large-scale CCTV systems, enterprise networks, and professional PoE deployments. With its full Gigabit architecture and multiple uplink options, this switch delivers fast, stable, and efficient data transmission for demanding network environments.
This switch is equipped with 24 Gigabit PoE ports, along with 2 Gigabit uplink RJ45 ports and 1 Gigabit SFP fiber uplink port, providing flexible connectivity for both copper and fiber network infrastructures. The Gigabit bandwidth ensures smooth data transfer for high-resolution IP cameras, servers, wireless access points, and other network devices.
Each PoE port supports the IEEE 802.3af/at PoE+ standard, delivering up to 30W per port to compatible devices. This allows the switch to power IP cameras, VoIP phones, and wireless access points directly through Ethernet cables, reducing installation complexity and extra power wiring.
One of its standout features is the extended transmission mode, which supports long-distance network transmission for surveillance installations. This makes it highly suitable for large buildings, warehouses, factories, schools, and outdoor security projects where cameras may be located far from the control room.
The switch uses a plug-and-play unmanaged design, allowing easy deployment without advanced network configuration. Simply connect your devices, and the switch automatically handles communication and power distribution efficiently.
Built with a durable metal chassis and stable cooling system, the ONV-H3024PFD is designed for continuous 24/7 operation. Its rack-mountable design makes it ideal for server rooms, control centers, and professional CCTV racks.
The latest price of the ONV-H3024PFD Full Gigabit 27-port PoE switch in Bangladesh is 25,000 BDT. You can buy the ONV-H3024PFD Full Gigabit 27-port PoE switch us at the best price. You can either buy it through our website or directly visit our office. Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh. Contact Us: +88 01894-683430
