Key Features
4-Port Gigabit PoE+
SFP Fiber Uplink
250m Extend Mode
VLAN Isolation
14Gbps Switching Capacity
| Category | Specification |
| Model | ONV-H3064PFD |
| Fixed Ports | 1× 1000Base-X SFP Fiber Port, 2× 10/100/1000Base-T RJ45 Uplink Ports, 4× 10/100/1000Base-T PoE Ports |
| Ethernet Ports | Ports 1–6 support auto-sensing 10/100/1000Mbps, full/half duplex, MDI/MDI-X |
| PoE Ports | Ports 1–4 (Data + Power) |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Max Power Per Port | 30W |
| Total Power Budget | 65W (AC 100–240V input) |
| Transmission Distance | Up to 100m (1000BASE-T), up to 250m in Extend Mode (10Mbps) |
| Fiber Support | Single-mode / Multi-mode, LC interface (optional module) |
| Fiber Distance | Multi-mode: 550m, Single-mode: up to 120km |
| Switching Capacity | 14Gbps (non-blocking) |
| Forwarding Rate | 10.4Mpps (64-byte packets) |
| MAC Table | 2K |
| Buffer Memory | 2MB |
| Jumbo Frame | 9.2K |
| Network Protocols | IEEE 802.3 / 802.3u / 802.3ab / 802.3z / 802.3x |
| Function Switch | Extend mode + VLAN isolation (Ports 1–4 support 10Mbps/250m in ON mode) |
| LED Indicators | Power, Extend, Link, PoE status |
| Power Supply | Built-in AC 100–240V, 50/60Hz |
| Power Consumption | <3W standby, <65W full load |
| Operating Temp | -20°C to 55°C |
| Storage Temp | -40°C to 80°C |
| Humidity | 5%–90% RH (non-condensing) |
| Dimensions | 200 × 130 × 40 mm |
| Weight | Net: 0.6kg / Gross: 0.9kg |
| Installation | Desktop / Wall mount |
| Surge Protection | 4KV lightning protection (8/20μs) |
| Protection Level | IP30 |
| Certifications | CCC, CE, FCC Part 15, RoHS, CE/LVD EN62368-1 |
| Warranty | 1 Year (lifelong maintenance support) |
The ONV-H3064PFD 6 Port Gigabit PoE Switch is a powerful and reliable networking device designed for modern surveillance and networking environments. Whether you need a stable solution for IP cameras, wireless access points, VoIP phones, or office networking, this PoE switch offers high-speed connectivity, long-distance transmission, and flexible uplink options in a compact design.

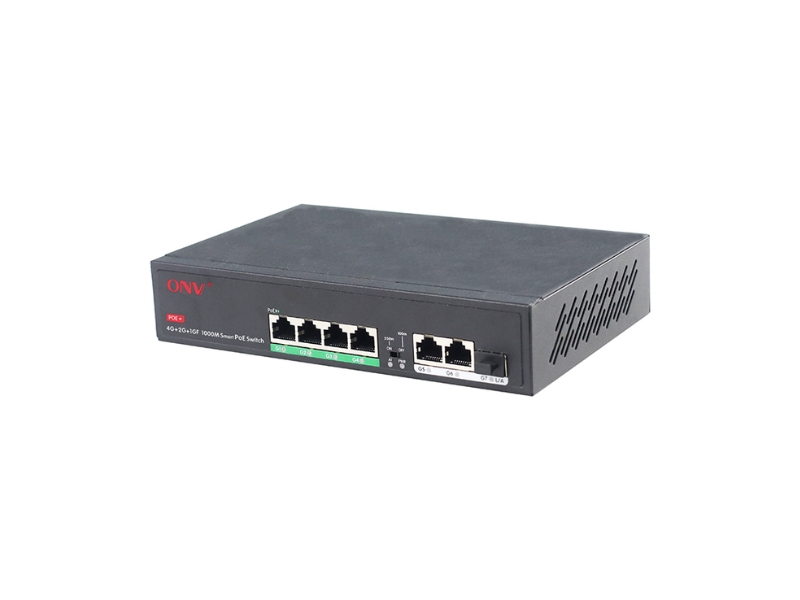

This switch comes with 4 Gigabit PoE+ ports, 2 Gigabit RJ45 uplink ports, and 1 SFP fiber uplink port, making it ideal for both small and medium-sized network setups. The PoE ports can deliver both power and data through a single Ethernet cable, reducing installation complexity and minimizing extra wiring costs. Each PoE port supports up to 30W power output, allowing users to connect high-power devices such as HD IP cameras and wireless access points without requiring separate power adapters.
One of the key advantages of the ONV-H3064PFD is its long-distance transmission capability. By enabling Extend Mode, ports 1–4 can support up to 250 meters of transmission distance at 10Mbps. This feature is highly useful for CCTV surveillance systems where cameras are installed far from the main control room or switch location. It eliminates the need for additional extenders or repeaters, helping users save both time and installation expenses.
The switch also includes VLAN isolation functionality, which improves network security and reduces broadcast traffic between PoE ports. This feature helps create a more stable and secure surveillance network by isolating communication between connected devices. For businesses and surveillance systems that require uninterrupted connectivity, VLAN isolation can significantly enhance overall network performance.
Performance-wise, the ONV-H3064PFD delivers smooth and efficient data transmission with its 14Gbps switching capacity and 10.4Mpps forwarding rate. The switch uses a store-and-forward forwarding mode to ensure accurate packet transmission and stable communication across connected devices. It also supports jumbo frames up to 9.2K, helping improve data transfer efficiency in high-bandwidth environments.
For fiber connectivity, the dedicated 1000Base-X SFP uplink slot provides flexible network expansion options. Users can install single-mode or multi-mode optical modules depending on their networking requirements. The switch supports fiber transmission distances ranging from 550 meters to as far as 120 kilometers, making it suitable for enterprise networking, industrial applications, and long-distance surveillance projects.
The ONV-H3064PFD is designed for durability and stable operation. It features built-in 4KV lightning protection, helping protect connected devices from electrical surges and unstable power conditions. The switch can operate in temperatures ranging from -20°C to 55°C, making it suitable for various indoor commercial and industrial environments.

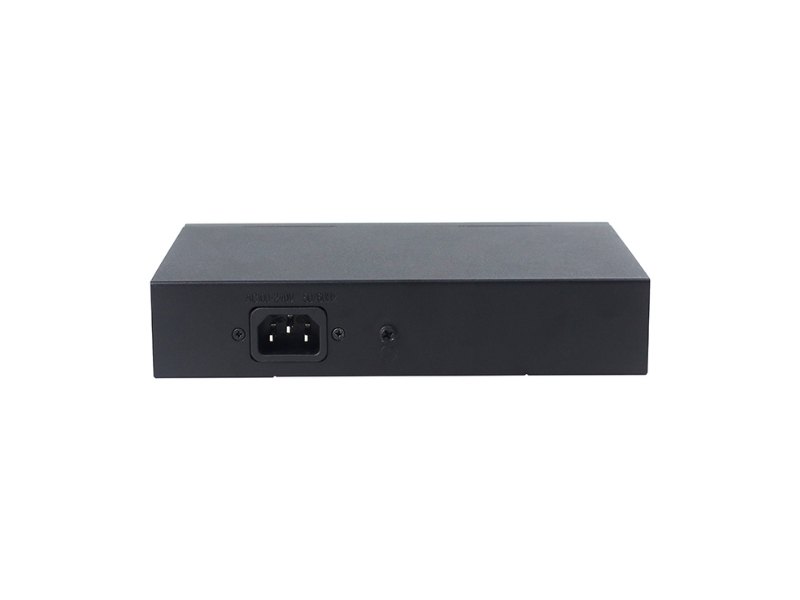

Installation is simple and convenient thanks to its compact desktop and wall-mount design. LED indicators for power, PoE status, and network activity allow users to monitor switch performance easily. The device also includes a built-in power supply supporting AC100-240V input voltage for stable operation.
Overall, the ONV-H3064PFD 6 Port Gigabit PoE Switch is an excellent choice for users looking for a dependable, high-performance, and cost-effective PoE networking solution. Its combination of Gigabit speed, PoE+ support, long-distance transmission, VLAN isolation, and fiber uplink connectivity makes it ideal for CCTV surveillance systems, office networks, retail stores, warehouses, and other networking applications requiring stable and efficient connectivity.
What is the Price of the ONV-H3064PFD 6 Port Gigabit PoE Switch
The latest price of the ONV-H3064PFD 6 Port Gigabit PoE Switch in Bangladesh is 4,500 BDT. You can buy the ONV-H3064PFD 6 Port Gigabit PoE Switch from us at the best price. You can either purchase it through our website or directly visit our office. Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh. Contact: +88 01894-683430
