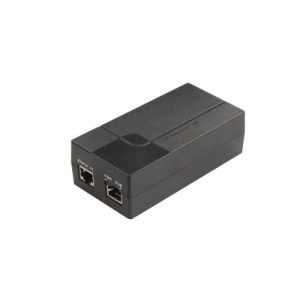

The ONV PSE3301AC-AT Gigabit Single Port PoE Injector is a versatile and reliable Gigabit single port PoE injector that provides a simple and cost-effective way to power PoE devices.
| Specification |
ONV-PSE3301AC-at |
| Model |
ONV-PSE3301AC-at |
| Interface Characteristics |
Fixed Port |
| Fixed Port |
1*10/100/1000M PoE port (Data/Power) |
| Uplink Port |
1*10/100/1000M uplink RJ45 port (Data) |
| Ethernet Port |
10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption |
| Twisted Pair Transmission |
10BASE-T:Cat3,4,5 UTP(≤100 meter) |
| Network Protocol and Indicator |
| Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T |
| LED Indicator |
Power: PWR (Green), POE: PoE (Green) |
| PoE & Power Supply |
| PoE Port |
IEEE802.3af/at @ POE |
| Power Supply Pin |
Default 1/2 (+)3/6 (-), optional 4/5(+) 7/8(-) |
| Max Power Per Port |
30W, IEEE802.3af/at |
| Total PWR / Input Voltage |
35W /(AC100-240V) |
| Power Consumption |
Standby<3W, Full load<30W |
| Configure Power |
N/A, AC100-240V 50-60Hz 0.5A |
| Physical Parameter |
| Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
| Storage TEMP / Humidity |
-40~+80°C, 5%~95% RH Non condensing |
| Dimension (LWH) |
119.461.838mm |
| Net /Gross Weight |
<0.18kg /<0.2kg |
| Installation |
Desktop |
| Certification & Warranty |
| Lightning Protection |
Port lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
| Warranty |
1 year, lifelong maintenance. |
ONV PSE3301AC-AT Gigabit Single Port PoE Injector
ONV PSE3301AC-AT Gigabit Single Port PoE Injector that supports the IEEE 802.3at PoE+ standard. It can provide up to 30W of power to a PoE-enabled device over a single Ethernet cable. The PSE3301AC-AT is easy to install and use, and it is ideal for powering PoE devices such as high-power IP cameras, wireless access points, and VoIP phones.
A PoE injector, also known as Ethernet-powered mid-span equipment, is a device that allows you to power PoE-enabled devices over a standard Ethernet cable. This is convenient because it eliminates the need to run a separate power cable to each device.One example of a PoE injector is the ONV PSE3301AC-AT Gigabit Single Port PoE Injector. This is an unmanaged gigabit PoE injector that can provide up to 30W of power to a single device. It is easy to use and install, and it is a cost-effective way to add PoE support to your network.
PoE injectors are ideal for a variety of applications
- Wireless access points
- IP cameras
- VoIP phones
- Visual intelligent building intercoms
- Other PoE-enabled devices
What is Benefits ONV PSE3301AC-AT Gigabit Single Port PoE Injector ?
- Eliminates the need for a separate power cable for each PoE device
- Simplifies cabling and installation
- Reduces costs
- Increases flexibility and scalability
- Improves reliability
FEATURE
Gigabit Ethernet port (1 Ethernet in and 1 Ethernet out ) easy to connect
◇ Using 1 Ethernet in and 1 Ethernet out connection mode, 1*10/100/1000Mbps RJ45 port convenient connection, and simple maintenance.
◇ Support non-blocking wire-speed forwarding.
Smart PoE power supply function
◇ 1*10/100/1000Base-T RJ45 port support PoE power, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Support desktop and wall-mounted installation.
◇ Plug and play, no configuration, simple and convenient.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, PoE.
◇ Low power consumption, no fan design, the flame-retardant plastic shell is exquisite and beautiful.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
What Is New ONV PSE3301AC-AT Gigabit Single Port PoE Injector ?
ONV PSE3301AC-AT Gigabit Single Port PoE Injector, and it is suitable for a variety of applications. It is easy to use and install, and it is a cost-effective way to add PoE support to your network.
If you are looking for a newer PoE injector with more advanced features, you may want to consider the following products:
- ONV-PSE3301AC-AT -at: This is an updated version of the ONV PSE3301AC-AT Gigabit Single Port PoE Injector that supports the IEEE 802.3at PoE standard, which can provide up to 30W of power to PoE-enabled devices.
- ONV-PSE3301-24P: This is a 24-port PoE injector that can provide power to up to 24 PoE-enabled devices. It is a good choice for businesses and organizations that need to power multiple PoE devices.
- ONV-PSE3301-48P: This is a 48-port PoE injector that can provide power to up to 48 PoE-enabled devices. It is a good choice for large businesses and organizations that need to power a large number of PoE devices.
How to use the ONV PSE3301AC-AT Gigabit Single Port PoE Injector?
- Connect the PSE3301AC-AT to a power outlet using the included power adapter.
- Connect an Ethernet cable from the PSE3301AC-AT 's PoE port to the PoE-enabled device.
- Connect an Ethernet cable from the PSE3301AC-AT 's uplink port to your network switch or router.
- The PSE3301AC-AT will automatically detect the PoE-enabled device and begin providing power.
