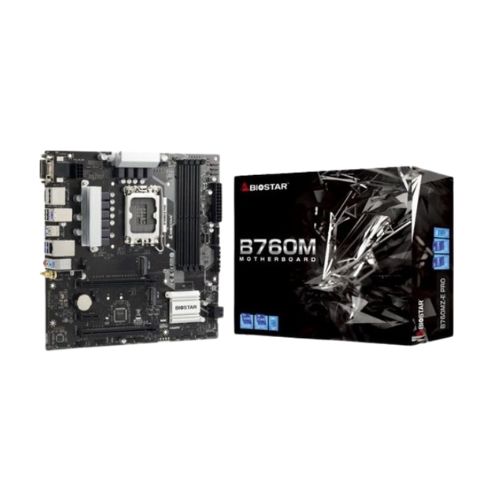

| Brand | Biostar |
| Model | B760MZ-E PRO |
| Body Color | Grey |
| Chipset Brand | Intel |
| Chipset | Intel B760 |
| Sockets Supported | LGA1700 |
| Built-in Processor | No |
| Supported CPU | 12th, 13th, and 14th Gen Intel Core i9/i7/i5/i3 processors, Intel Pentium processors, and Intel Celeron processors |
| Generation | 12th/13th/14th |
| Memory Type | DDR5 |
| Memory MHz | 6000+(OC) / 6000(OC) /5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 non-ECC |
| Memory Channel | Dual |
| Memory Slot | 4 x DDR5 DIMM Memory Slot |
| Memory Max. | 192GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 2 |
| M.2/SSD Expansion Slot Details | 2 x M.2 ((1 x M.2 Supports M.2 Type 2280 SSD module), (1 x M.2 Type 2242/2260/2280 SSD module)) |
| Graphics | Integrated |
| Graphics Chipset | Integrated With Processor |
| Multi-GPU Support | No |
| PCI Express Slot | 1 x PCIe 4.0 x16 Slot (x16 mode) (Processor), 1 x PCIe 3.0 x16 Slot (x4 mode), 1 x PCIe 3.0 x1 Slot (Chipset) |
| Audio Chipset | High Definition Audio ALC897 |
| Audio Channel | 7.1 |
| LAN Chipset | Realtek RTL8125B |
| LAN Speed (Mbps) | 10/ 100/ 1000/ 2500Mbps |
| WiFi | No |
| Bluetooth | No |
| USB Port | 3 x USB 3.2 (Gen1), 2 x USB 2.0 |
| VGA Port | 1 |
| DVI Port | 1 |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| IDE Port | No |
| SATA Port | 4 |
| Thunderbolt | No |
| TPM Port | 1 |
| COM Port | 1 |
| FireWire | No |
| CrossFire Support | No |
| Sli Support | No |
| Raid Support | 0, 1, 5, 10 |
| RGB Support | No |
| Approx. Power Consumption | 60W |
| Form Factor | Micro-ATX |
| Supported Operating System | Windows 10 and Windows 11 |
| Compatible Products | Core i3 12100F, Core i3 12100, Core i5 12400F, Core i5 12400, Core i5 12500, Core i7 12700, Core i7 12700K, Core i9 12900K, Core i9 12900KS |
| Warranty | 3 Year |
