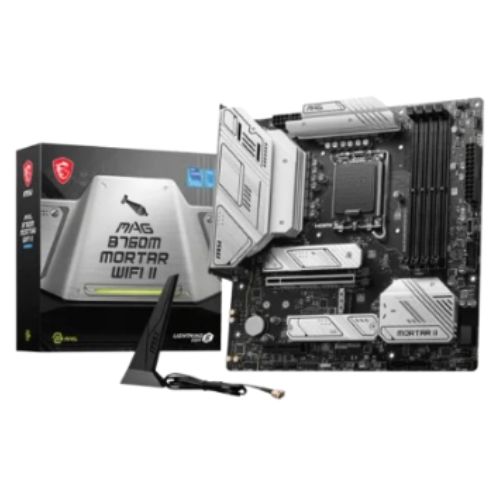

Features of the MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
Specification of The MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
| Feature | Specification |
|---|---|
| Brand | MSI |
| Model | MAG B760M MORTAR II (Wi-Fi 6E) |
| Body Color | Black |
| Chipset Brand | Intel |
| Chipset | Intel B760 |
| Sockets Supported | LGA1700 |
| Built-in Processor | No |
| Supported CPU | 12th, 13th, and 14thGen Intel Core Processors, Pentium Gold and Celeron Processors |
| Generation | 12th/13th/14th |
| Memory Type | DDR5 |
| Memory MHz | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Memory Channel | Dual |
| Memory Slots | 4 |
| Memory Max. | 192GB |
| Optane Memory Support | No |
| Storage Interface | 6.0 Gb/s |
| M.2 Slots | 3 |
| M.2 Details | 3 x M.2 (1 x M.2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, 1 x M.2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 1 x M.2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices) |
| Graphics | Integrated (with compatible CPU) |
| Graphics Chipset | Integrated With Processor |
| PCI Express Slot | 1 x PCI-E x 16 (PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)) |
| Audio Chipset | Realtek ALC897 Codec |
| Audio Channels | 7.1 |
| LAN Chipset | Realtek 2.5Gbps LAN |
| LAN Speed (Mbps) | 2500 |
| WiFi | Yes |
| WiFi Technology | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| USB Ports | 4 x USB 2.0, 3 x USB 3.2 Gen 2 Type A, 1 x USB 3.2 Gen 2 Type C |
| VGA Port | No |
| DVI Port | No |
| HDMI Port | 1 |
| DisplayPort (DP) | 1 |
| SATA Port | 4 |
| Thunderbolt | No |
| TPM Port | Yes |
| COM Port | No |
| CrossFire Support | No |
| Sli Support | No |
| Raid Support | 0, 1, 5, 10 |
| RGB Support | RGB |
| RGB Connector | 1 x RGB LED connector (JRGB) |
| Approx. Power Consumption | 60 |
| Form Factor | Micro-ATX |
| Supported Operating System | Windows 11, Windows 10 |
| Warranty | 3 Years |
The MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard is for gaming production aficionados, Intel Core 14th and 13th, processors, as well as Intel Pentium Gold Processors built for the LGA 1700 socket. With DDR5, this motherboard embraces the memory future, allowing for memory rates of up to 7800+ (OC) MHz, ensuring fluid multitasking and improved system responsiveness. The improved 12+1+1 Duet Rail, two 8-pin CPU power cores, and memory boost all work to create an overclocking-friendly environment. The motherboard also has a PCIe 5.0 slot, Gen 4 x4 M.2, and USB 3.2 Gen 2 x2 for customers who want transfer speeds with the newest gaming accessories. The premium thermal, expanded heatsink design, and M.2 Shield Frozr offer top performance when it comes to maintaining appropriateness during strenuous gaming and resource-intensive work.
The latest price of the MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard Price in Bangladesh is 25,500 BDT. You can buy the MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard from us at the best price. You can either buy it through our website or directly visit our office. Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh. Contact Us: +88 01894-683430
