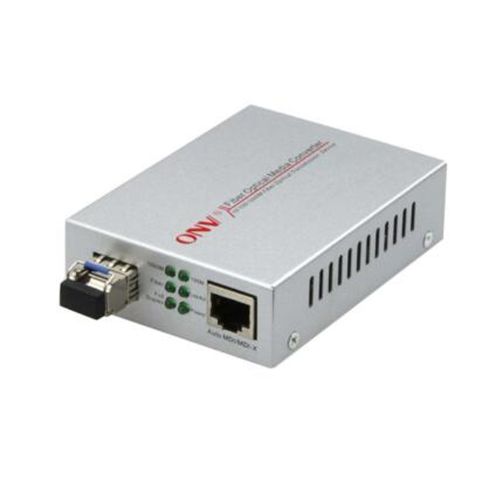

ONV 1110S-SLX-F-B 2 Port Single Mode Dual Fiber Gigabit Media converter

Description

The ONV 1110S-SLX-F-B 2 Port Single Mode Dual Fiber Gigabit Media converter is a powerful and versatile networking device that can be used in a wide range of applications. It is ideal for businesses and organizations that need to connect copper and fiber optic networks, or that need to extend the reach of their network to remote locations.

FEATURE

Gigabit photoelectric Ethernet conversion transmission

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

◇ Support gigabit RJ45 port and gigabit SFP fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Easy to use and simple to maintain

◇ Support full-duplex/half-duplex working mode with auto-negotiation function.

◇ Automatic identification of twisted pair MDI/MDI-X cross lines and parallel lines.

◇ LED working status indication for network diagnosis and fault checking, reducing maintenance workload.

◇ Compatible with IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X network protocol, gigabit R45 port rate auto-negotiation.

◇ Plug and play, no configuration required, centralized power supply and centralized connection management through 2U-14 slot rack.

Stable and reliable

◇ CCC, CE, FCC, RoHS.

◇ Low power consumption, No fan, galvanized steel casing.

◇ Comply with telecommunication network access requirements, and have the telecommunications equipment network access license of the MIIT.

Feature	Specification
Model	ONV1110S-SLX-F-B
Interface	11.25G uplink LC fiber port (Data), 110/100/1000Base-T RJ45 port (Data)
Ethernet Port	10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP(≤100 meters), 100BASE-TX: Cat5 or later UTP(≤100 meters), 1000BASE-T: Cat5e or later UTP(≤100 meters)
Optical Fiber Port	1.25Gbps, Multi-mode dual fiber, LC port, 1.25Gbps, Single-mode dual fiber, LC port, 1.25Gbps, Single-mode single fiber, LC port
Optical Cable/ Distance	Multi-mode: 850n/ 0-500m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode	Store and forward(Full wire speed)
Switching Capacity	2.0Gbps (Non-blocking)
Forwarding Rate@64byte	3.0Mpps
MAC	2K
Buffer Memory	1M
Jumbo Frame	1632byte
LED Indicator	Power: PWR (Green), Data: L/A (Green), Half/full duplex: FDX (Green),  Speed: 100/1000 (Green: 1000M@on, 100M@off)
Total PWR / Input Voltage	3.5W/ (5VDC)
Power Consumption	Standby<1W, Full Load<4W
Operation TEMP / Humidity	-20°C~+55°C, 5%~90% RH Non condensing
Storage TEMP / Humidity	-40°C~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	947027mm
Net /Gross Weight	<0.3kg / <0.5kg
Installation	Desktop, 2U-14 Rack mount
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	3 years, lifelong maintenance

ONV 1110S-SLX-F-B 2 Port Single Mode Dual Fiber Gigabit Media converter

The ONV 1110S-SLX-F-B 2 Port Single Mode Dual Fiber Gigabit Media converter is a versatile and high-performance solution for connecting copper and fiber optic networks. It is ideal for a wide range of applications, including security monitoring, wireless coverage, intelligent transportation, and safe cities.

Applications:

The ONV 1110S-SLX-F-B 2 Port Single Mode Dual Fiber Gigabit Media converter is ideal for a wide range of applications, including:

• Security monitoring: The ONV 1110S-SLX-F-B can be used to connect security cameras and other security devices to a fiber optic network. This allows you to transmit high-definition video and other data over long distances with minimal latency.
• Wireless coverage: The ONV 1110S-SLX-F-B can be used to extend the reach of a wireless network to remote locations. This is ideal for businesses and organizations that need to provide wireless coverage in large areas, such as campuses, office buildings, and warehouses.
• Intelligent transportation: The ONV 1110S-SLX-F-B can be used to connect traffic lights, cameras, and other intelligent transportation systems to a fiber optic network. This allows you to monitor and manage traffic flow more effectively.
• Safe cities: The ONV 1110S-SLX-F-B can be used to build a secure and reliable network for connecting security cameras, sensors, and other devices in a safe city. This allows you to monitor and protect your city more effectively.



What is the price of the ONV 1110S-SLX-F-B 2 Port Single Mode Dual Fiber Gigabit Media converter in Bangladesh?

The latest price of the ONV 1110S-SLX-F-B 2 Port Single Mode Dual Fiber Gigabit Media converter is 5080 BDT.

You can buy this ONV 1110S-SLX-F-B 2 Port Single Mode Dual Fiber Gigabit Media converter from us at the best price. Or You can buy it through our website or directly visit our office.
