| Chipset | MT7628A |
| CPU core count | 580 MHz Single-Core, MIPS24KEC |
| Interface | 10/100 Mbps RJ45 Ports: 2 Ethernet Notes: 1× WAN port, 1× LAN port USB-A 2.0 Ports: 1 LED: System Physical Buttons: Reset Button, Configurable DIP Switch Power Input: USB-C Port |
| Storage size | Flash/ROM : 16 MB (128 Mbit) NOR DDR/RAM : 128 MB (1 Gbit) DDR3 |
| Transmit Power | Wi-Fi Transmission Power: CE: <20 dBm (2.4 GHz) <23 dBm (5.15 GHz ~ 5.35 GHz) FCC: <24 dBm (5.25 GHz ~ 5.35 GHz & 5.47 GHz ~ 5.725 GHz) <30 dBm (2.4 GHz & 5.15 GHz ~ 5.25 GHz) |
| Wireless Features | Range Performance: Max: 110 m (361 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. Wall Performance: Two wooden walls with thickness < 3.8 cm (1.5'') One concrete wall with thickness < 20 cm (7'') |
| Wireless | 5 GHz Wi-Fi Speed: 867 Mbps 2.4 GHz Wi-Fi Speed: 300 Mbps 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) Wi-Fi Antennas: 2× Fixed |
| More | |
| Features | Operation Modes: Wi-Fi Router, Access Point, Range Extender, WISP Mesh: Cudy Mesh Mesh Backhaul: Wireless Backhau, Wired Backhaul Multi-Band Backhaul: True WAN Mode: DHCP, Static IP, PPPOE |
| General | |
| Dimensions | 118×80×27.5 mm 4.65×3.15×1.08 inches |
| Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing |
| Package Contents | Main Product Ethernet Cable Installation Guide |
| Power | Power Methods: DC / PD DC: 5V 2A, PD |

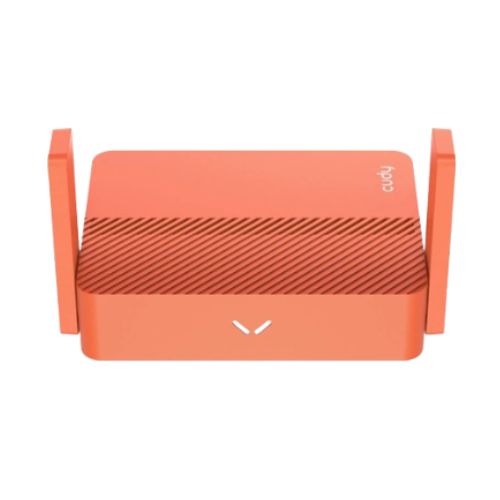

| Type | AC1200 Wi-Fi Mini Travel Router |
| Weight | 99.9 g (3.52 oz.) |
| Others | Wi-Fi Standards: Wi-Fi 5 Max Wi-Fi Modulation: 256-QAM Wi-Fi Efficiency: MU-MIMO Wi-Fi Efficiency Note: MU-MIMO is available on 5 GHz Max Capacity: 128 Recommended Client Upper Limit: 40 Max Wi-Fi Channel Width: 80 MHz Wi-Fi Security: WPA-PSK (WPA/WPA2) Guest Network: 2.4 GHz, 5 GHz WPS: true |
| Warranty Information | |
| Warranty | 1-Year Brand Warranty |
