| General | |
| Brand | ONV |

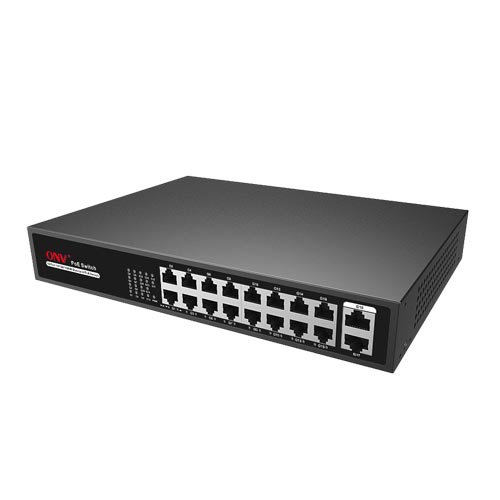

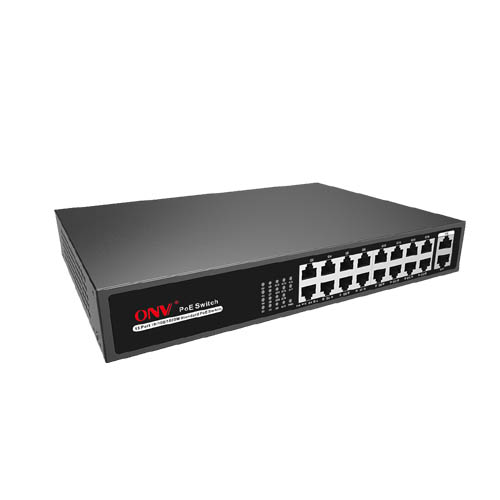

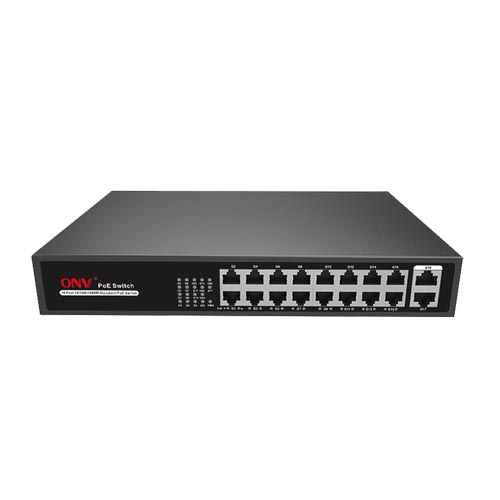

| Model | ONV-H3016PS |
| Interface Characteristics | |
| Fixed Port | 16*10/100/1000Base-T PoE ports (Data/Power) |
| 2*10/100/1000Base-T uplink RJ45 ports (Data) | |
| Ethernet Port | Port 1-16 can support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption |
| Twisted Pair Transmission | 10BASE-T: Cat3, 4, 5 UTP (≤100 meters) |
| 100BASE-TX: Cat5 or later UTP (≤100 meters) | |
| 1000BASE-T: Cat5e or later UTP (≤100 meters) | |
| Chip Parameter | |
| Network Protocol | IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 36Gbps (non-blocking) |
| Forwarding Rate@64byte | 26.78Mpps |
| MAC | 2K |
| Buffer Memory | 2M |
| Jumbo Frame | 9.2k |
| LED Indicator | Power: PWR (Green), Network: Link (Green), PoE: PoE (Green) |
| PoE&Power Supply | |
| PoE Port | Port 1-16 |
| Power Supply Pin | 1/2(+) 3/6(-) |
| Max Power Per Port | 30W, PoE+ |
| Total PWR/ Input Voltage | 160W/ (AC100-240V) |
| Power Consumption | Standby <13W, Full load <160W |
| Power Supply | Built-in power supply, AC100~240V 50-60Hz, 3.0A |
| Physical Parameter | |
| Operation Temp/ Humidity | -20~+55°C, 5%~90% RH Non condensing |
| Storage Temp/ Humidity | -40~+75°C, 5%~95% RH Non condensing |
| Dimension (L*W*H) | 270*181*44.5mm |
| Net /Gross Weight | 1.4kg/ 1.9kg |
| Installation | Desktop, 1U/19 inch cabinet |
| Certification & Warranty | |
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
| Warranty | 1 year, lifelong maintenance. |
